The Flour Storage

Image: Tomomi Hayashi

Rotermanni Vana Jahuladu ja Uus Jahuladu, Tallinn

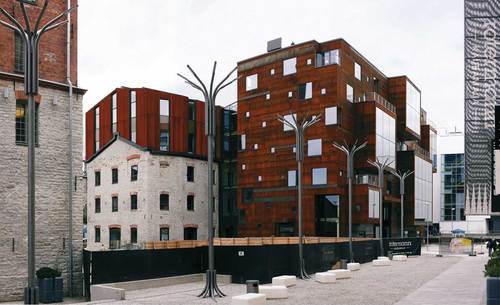

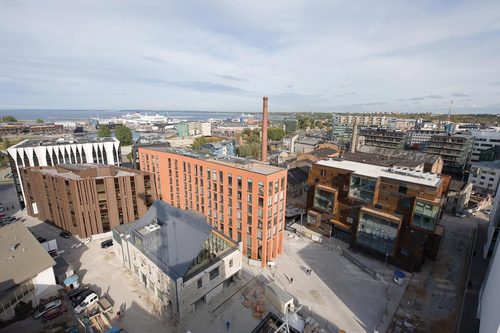

The 1,5 century-old Rotermann Quarter, a former industrial area for food production, is located between the Tallinn’s old town and the port, where stands still historically-valuable limestone buildings under heritage protection. The approved detail planning calls for adoptive re-use of existing buildings as well as insertion of new volumes amongst to create “live-work” city right at the center of Tallinn with people-friendly environment of entirely car-free, accommodating 400 parking lots underground. On-going redevelopment takes place among historical limestone buildings, including the Old Flour Storage from 1904. The New Flour Storage was asked to form a plaza as a new focal point of the quarter. The project consists of three volumes; the Old Flour Storage with 2 additional stories, the New Flour Storage and the Atrium connecting the two. Ground floor is for retail and all upstairs are for offices.

Our approach was to relate and strengthen the character of historical quarter through finding and adopting the character of the surroundings. For facade articulation we have abstracted proportion of wall versus window openings as a character of old industrial buildings. For main facade material cor-ten steel was chosen for its property fitting to the existing surroundings of rough surfaces; limestone walls, brick lintels and rusted steel details. It pays homage to the area’s industrial past.

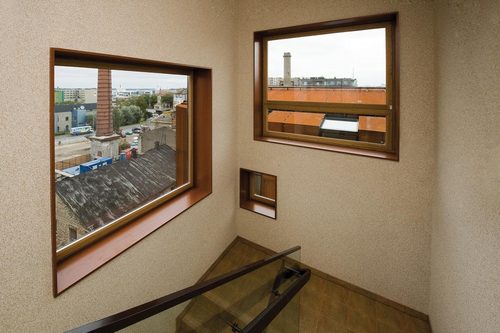

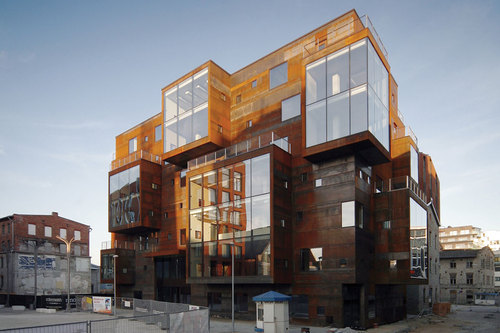

The New Flour Storage is to be a ’ Communication Wall’ between offices and the plaza. The windows consists of three sizes; 75cm x 75cm, 2m x 2m, larger ones over floor height. The small ones are to frame the views as well as to bring fresh air, the middle ones are to relate to the human scale, and the biggest is to provide the panorama view of the plaza and the Old Town. The bigger windows are cantilevered for 1.5m or 2.6m, breaking the homogeneous rectangular outline of the building and offering special place among office space for meeting room or communal area with panorama views. The cantilevered boxes also work as balconies for upper floors.

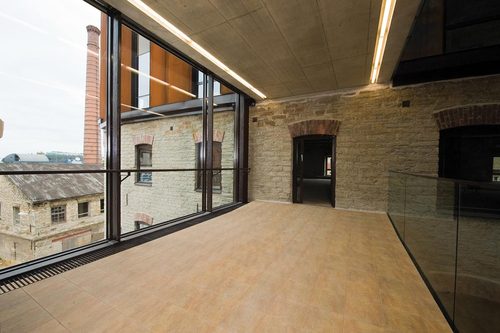

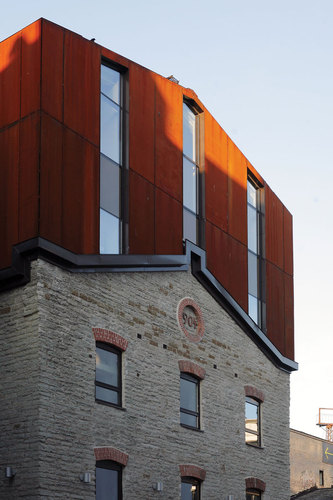

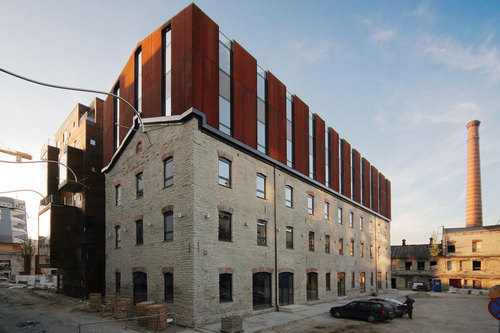

The Old Flour Storage’s 2 additional floors have vertical ribbon windows placed according to the rhythm of the existing windows. The roof shape is to refer to the roof of the existing building. The floor heights of 3.4m and 4.6m are rather high for standard office use but decided to refer to the atmosphere of the existing floors. The renovation work has been done to restore original window openings.

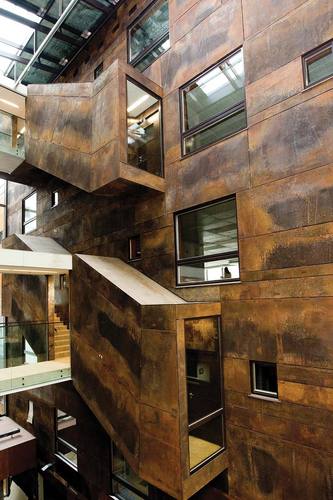

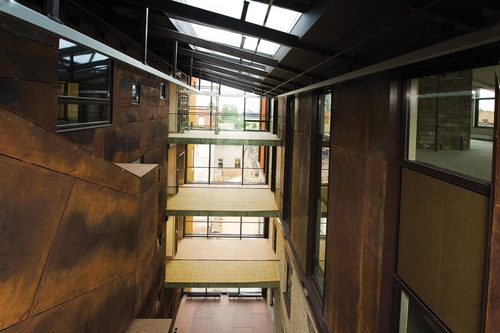

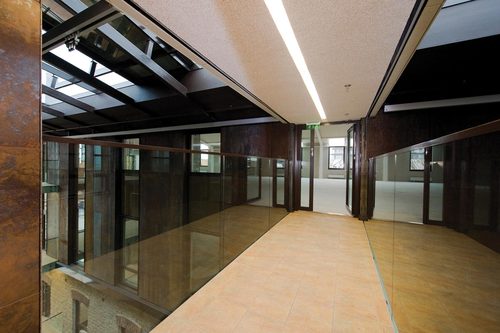

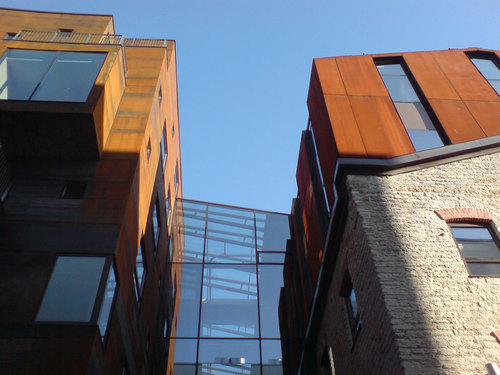

The glass-roofed Atrium is to become „air“ sandwiched in-between. The bridges functionally connect the two for lift access as well as for evacuation route.

Client: Rotermann City OÜ

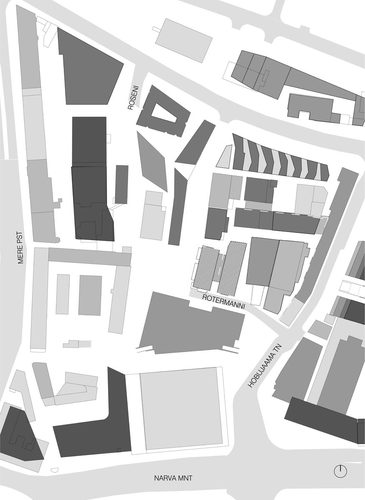

Location: Rotermanni 6 ja 8, Tallinn, Estonia
Architects: Yoko Azukawa, Hanno Grossschmidt, Tomomi Hayashi/ OÜ HG Arhitektuur
Structural Engineer: OÜ Neoprojekt
Mechanical Engineer: OÜ Hevac
Electrical Engineer: AS Nord Projekt
Detail Planning: AS K Projekt
Project Management: OÜ Projektipea
General Contractor: KMG Ehitus
Site Area: 12,055m²
Building Area: 1,266m²
Total Floor Area: 9,002m²
Invited Competition: 1st prize/ December 2005
Design and Construction: 2006-2008
Building cost: undisclosed

Award:
Nominated for Mies van der Rohe prize 2009
Awarded “Best building in histrorical environment 2008” from the Culture Department of City of Tallinn
Exhibition:
Rotermann Quarter’s Future vol.2, Disaini- ja Arhitektuurigalerii, Tallinn, 2006 Publication:
A10 MAGAZINE #26, March 2009
