New York, United States of America

Olnick Spanu House

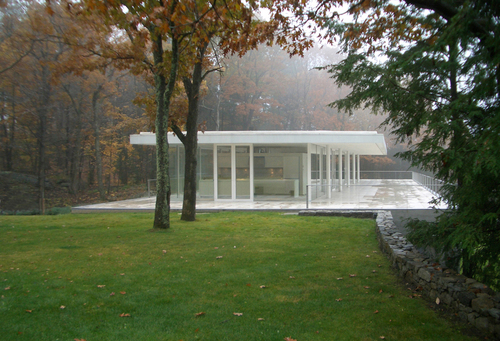

Icono-olnick-spanu_eacb_01_02_large

Photo by Miguel Quismondo

The place is of profound tranquility where after a day of rain and fog an intense light reflects in the stilled mirror of the majestic Hudson River´s deep waters.

Casa-olnick-spanu_javier-callejas_01_large

A place where twilights are a thousand colors as the water breaks into a thousand reflections. A place where the air is clean and calm, and mild. One could say a place that is very close to heaven.

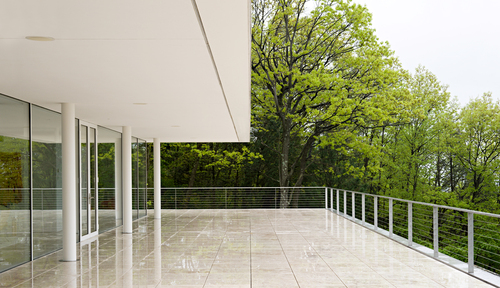

Casa-olnick-spanu_javier-callejas_02_large

In this impressive place, we establish a plane, a platform that underlines the landscape before us, seeking to enhance it.

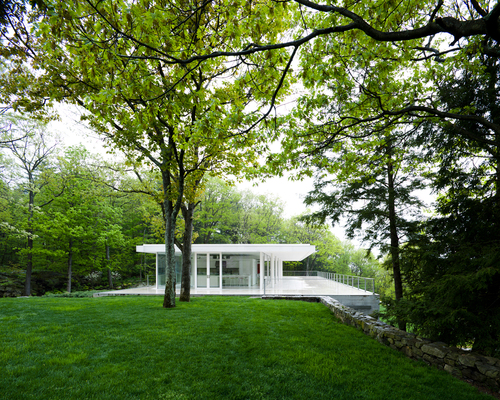

Casa-olnick-spanu_javier-callejas_05_large

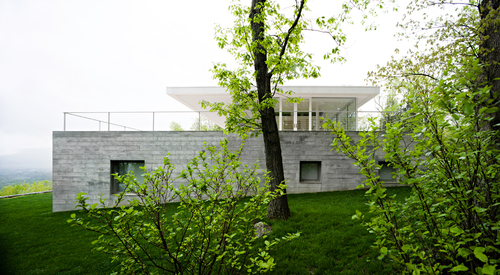

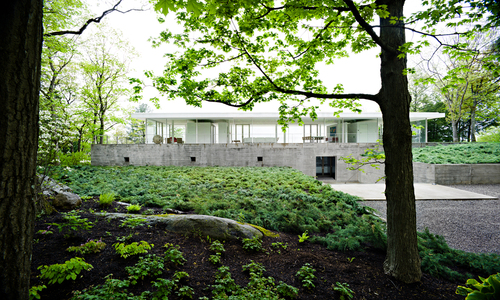

A large long box is thus built, 122 feet long by 54 feet wide by 12 feet high, with sturdy concrete walls that accentuate its relationship to the land. The roof of this box is flat, paved in stone, travertine, so that we may use it.

Casa-olnick-spanu_javier-callejas_11_large

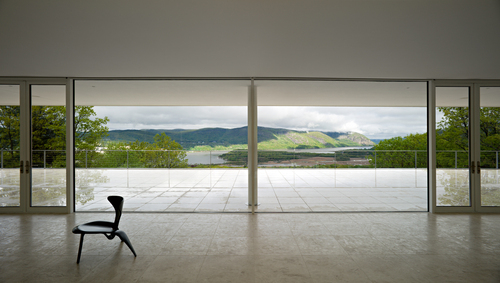

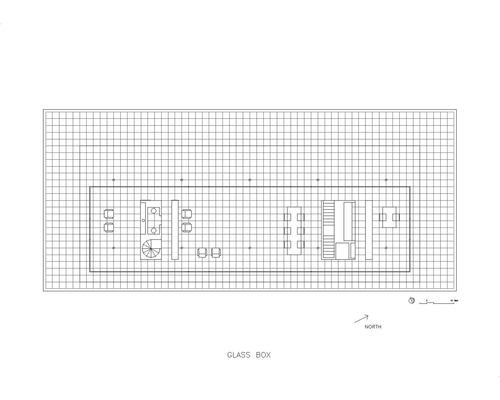

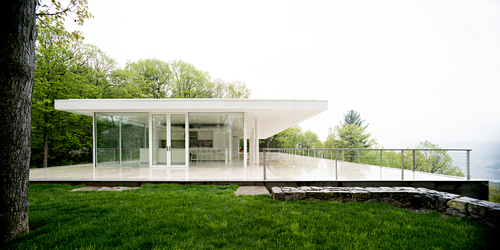

And to protect ourselves from the sun and rain, over the stone plane we raise a light roof 100 feet long by 40 feet wide by 9 feet tall, held by 10 cylindrical steel pillars that are arranged according to a 20×20 foot grid. This roof cantilevers 10 feet along all of its sides. And to make this space habitable, we put a glass box under the roof, an enclosure measuring 94 feet long by 25 feet wide. This glass box contains the back row of columns within it and leaves the front columns outside, in order to further accentuate its transparency.

Casa-olnick-spanu_javier-callejas_10_large

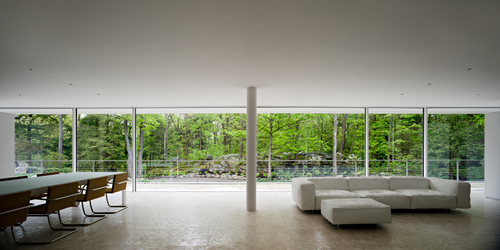

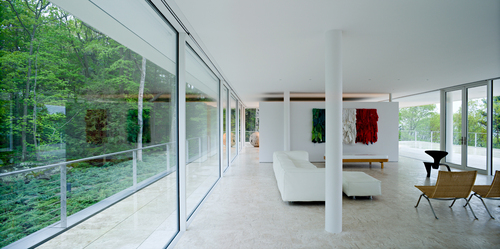

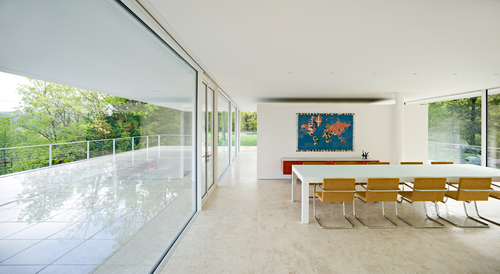

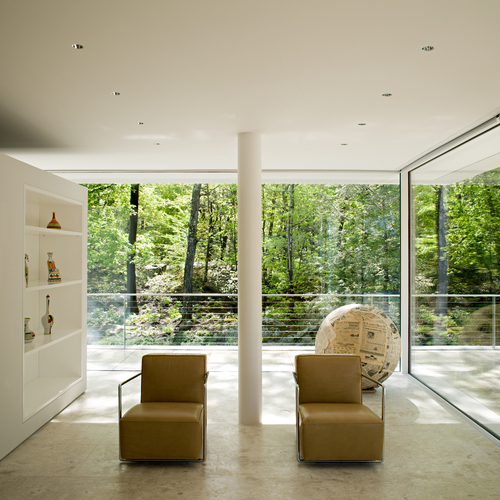

This construction on the platform resembles a large table with ten legs. Three areas are created within it, divided by two white boxes that do not reach the ceiling, containing the stairs and service spaces. The central space is the living area, and the dining room has a large white table. On one side, closer to the swimming pool, is the kitchen, and on the other side, in the manner of a pensatorio, the area around the hearth.

Casa-olnick-spanu_javier-callejas_08_large

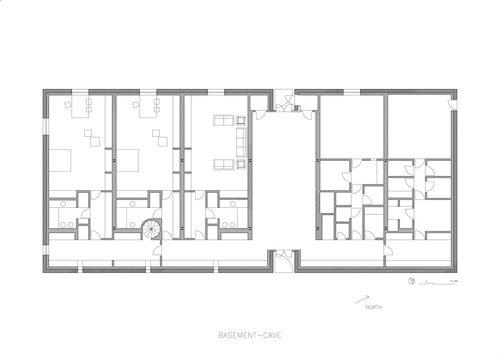

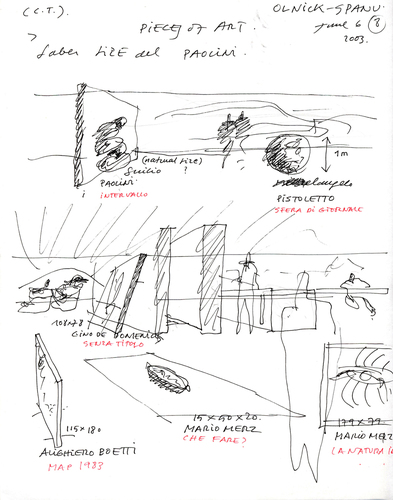

And below, inside the cement box, the bedrooms and baths are housed. In its central vestibule, connecting the main entrance and the access to the garden, a gallery has been created where pieces of Arte Povera and other pieces of contemporary Italian art are displayed, in addition to other areas around the house.

Casa-olnick-spanu_javier-callejas_03_large

In all, once again, the hut over the cave. The tectonic piece on top of the stereotomic piece.

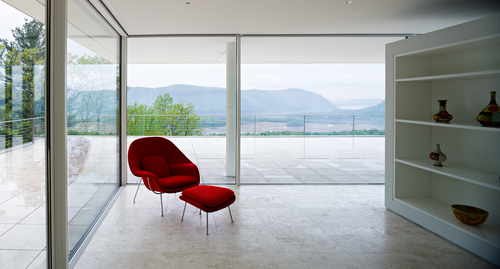

Casa-olnick-spanu_javier-callejas_04_large

CREDITS

Casa-olnick-spanu_javier-callejas_12_large

Architects & Engineers

Casa-olnick-spanu_javier-callejas_09_large

ARCHITECT: Alberto Campo Baeza, Estudio Arquitectura Campo Baeza, S.L.

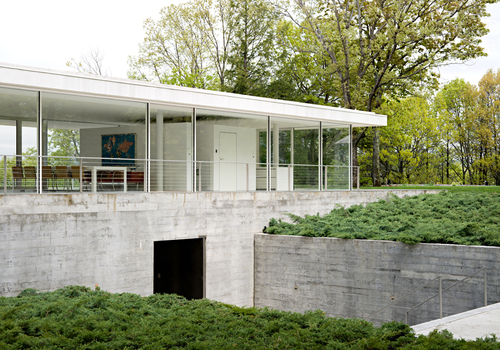

Casa-olnick-spanu_javier-callejas_13_large

PROJECT MANAGER: Miguel Garcia-Quismondo, Architect

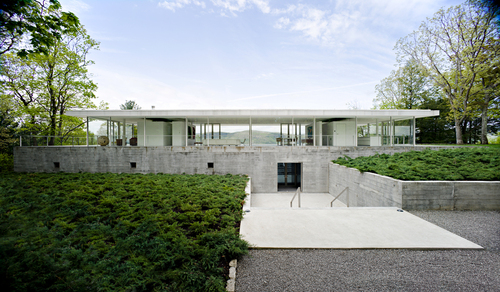

Casa-olnick-spanu_javier-callejas_14_large

COLLABORATOR: Ignacio Aguirre, Architect

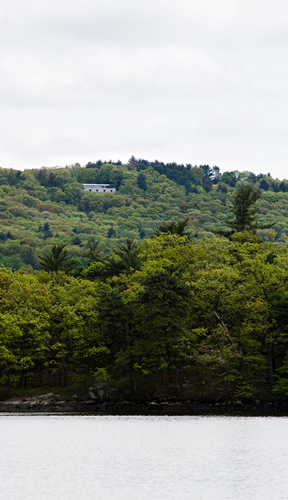

Casa-olnick-spanu_javier-callejas_15_large

STUCTURAL ENGINEERS: Michael P. Carr, P.E., Maria Conception Perez Gutierrez, Architect

Casa-olnick-spanu_javier-callejas_06_large

MEP ENGINEERS: D’antonio Consulting Engineers

Casa-olnick-spanu_javier-callejas_07_large

Consultants

Casa-olnick-spanu_javier-callejas_16_large

GENERAL CONSULTANTS: Massimo & Lella Vignelli

Olsp_planta-baja_large

LIGHTING CONSULTANT: Gary Gordon, Llc

Olsp_planta-alta_ago-06_large

CONCRETE CONSULTANT: Reginald D. Hough, Faia

Olsp-seccion-constructiva_large

COLOR CONSULTANT: Donald Kaufman & Taffy Dahl

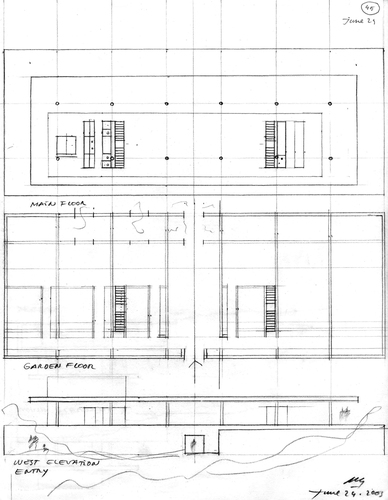

Olnick_02_large

GLASS CONSULTANT: Juan José Pérez Pina, Mel Lebo

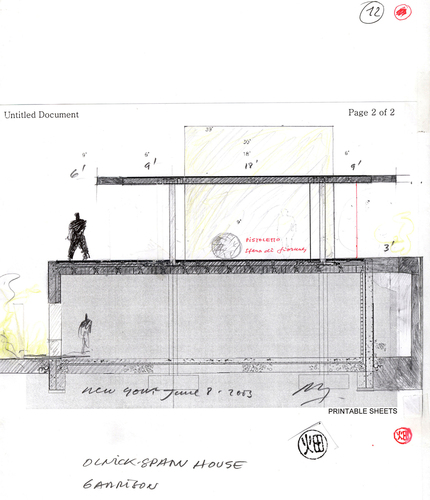

Olnick_06_large

TIMING:

Olnick_07_large

2003 PROJECT
2004 DEMOLITION OF OLD STRUCTURE
2005 – 2007 CONSTRUCTION
2008 FURNISHING

Olnick_08_large

Pag_39_large

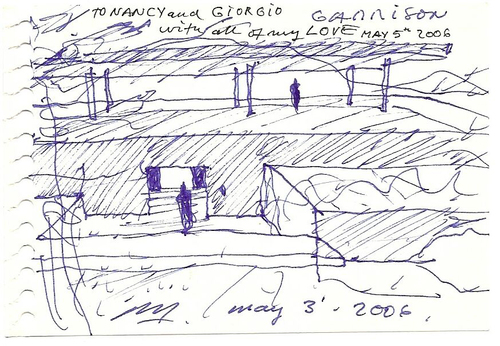

Sketch_large
