Paris, France

Heliotrope Raising

Initially, there is a modest little house, totalizing an area of 60 m² on two levels, situated in a backyard plot, in a very narrow area of the 20th district of Paris. Enclosed and humid because of the presence of an underground aqueduct, the house is plunged into darkness as the buildings nearby and especially a 20m high wall cover any chance of light.
Beyond the obvious need to increase the family’s living space, there is also a true a desire to gain light and visual clearance.

The search for light is what guides the design of the project until the genesis of an “heliotropist” architecture. It is therefore necessary to gain height over the old construction up to the maximum volume of capacity, limits of urban regulations, and budget. Naturally, the center of gravity of the new dwelling, that is to say the living rooms, finds its place on the top floor.

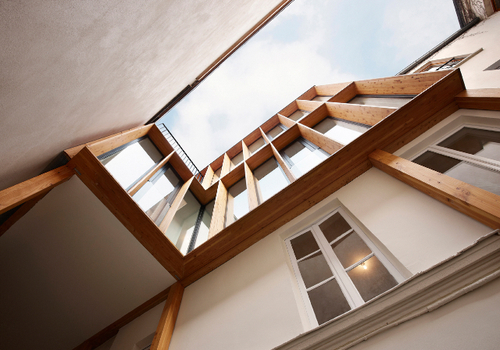

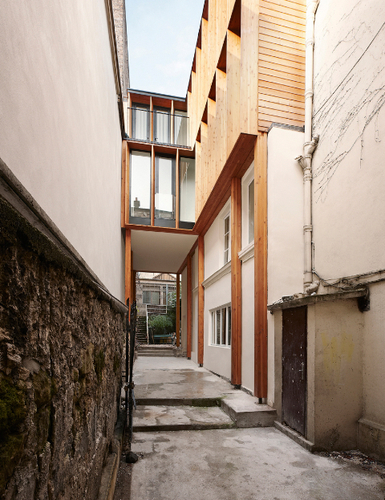

The access to the site through a 90cm wide corridor and the structural weakness of the existing building makes us opt for a lightweight wooden structure wich can easily be manipulated. On the wide length of the house, side yard, the existing walls are so fragile that, as a precaution, large “stilts” in glulam will span them.

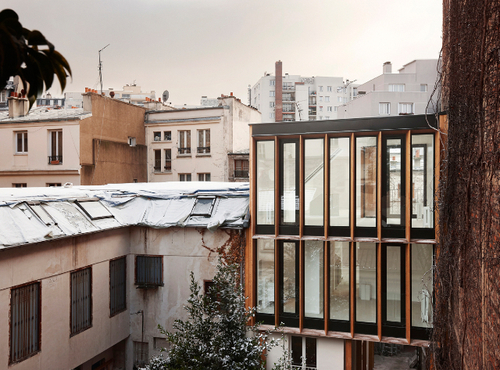

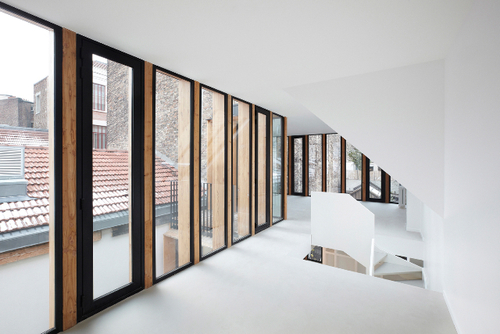

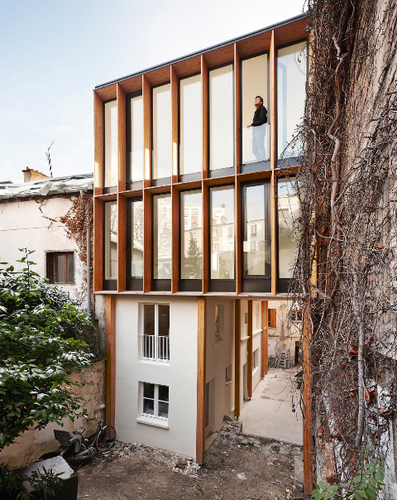

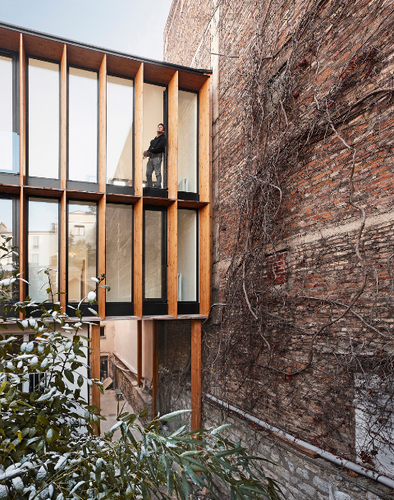

On the newly created floors, on all open sides, the skeleton of the wood frame wall will be exhibited. Structural elements will be displayed every 80 cm, combined with a filling of a full height volume of glass for maximum natural light. Structural glued laminated Douglas, extended and narrowed asymmetrically draws a regular vertical grid which acts as a sunshade and opposes a kind of three-dimensional filter to vis-à-vis. This principle applied consistently unifies the created volume and gives it a clear expression, despite its modest size, in a dominant and diverse site. Finally, this technique removes the problem of façade composition on such a small volume.

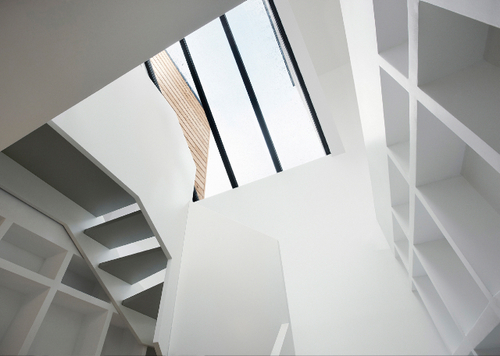

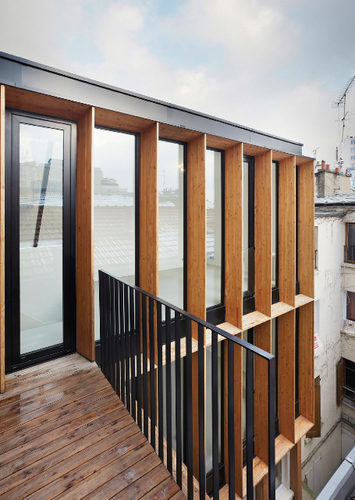

Internally, the house is organized around a central space occupied by the staircase beneath a canopy angle (regulation impact of a prospect of a neighboring building). The hopper, in decreasing width, lets the light descend from the canopy to the DRC. A small south-facing terrace on the 3rd floor benefits directly from the sun and the view over the colorful roofs of the neighborhood. In the new part of the house, partitioning is voluntarily minimized. The facades are left free to all partitions or doors; we flow along to enter the bathroom or walking closet.
