Refuge Pavilion
Photo: Jorge Garcia Pereira © All rights reserved. Courtesy by Francisco Portugal e Gomes
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.
The project anticipates the rearrangement of an already existent construction annexed to a small house, in a refuge pavilion with 65 m².
Photo: Jorge Garcia Pereira © All rights reserved. Courtesy by Francisco Portugal e Gomes
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.

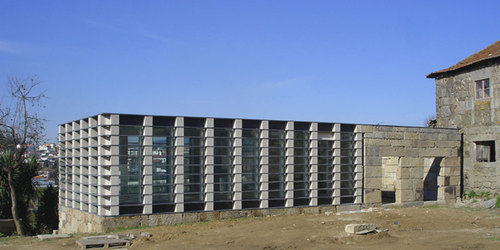

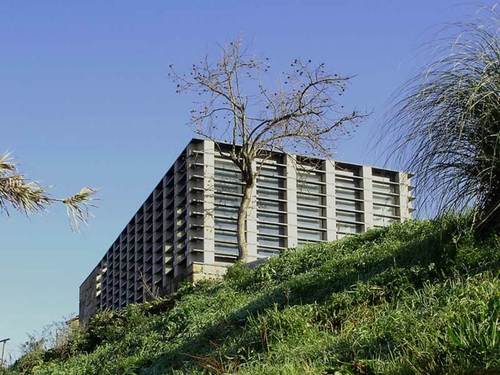

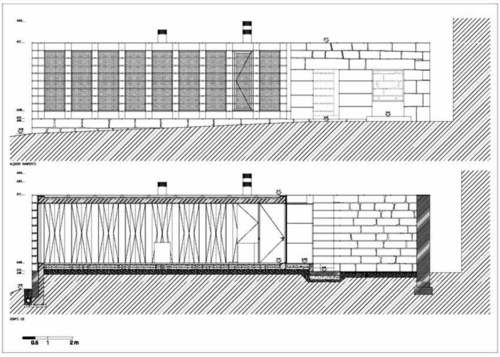

The implanting of the new building follows the limits of this existent construction in the west side, recycling small stone. The opposite side is rebuilt, realigned and, reusing the granite header from the best walls, is created an uncovered yard that serves as entrance and, at the same time, decompresses the proximity with the neighbouring house. This reconstructed element melts itself with the new construction interlinking the granite wall with horizontal slate plates of 3 cm in thickness placed in small stone cubes making a continuous grate that draws the building.
Photo: Jorge Garcia Pereira © All rights reserved. Courtesy by Francisco Portugal e Gomes
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.

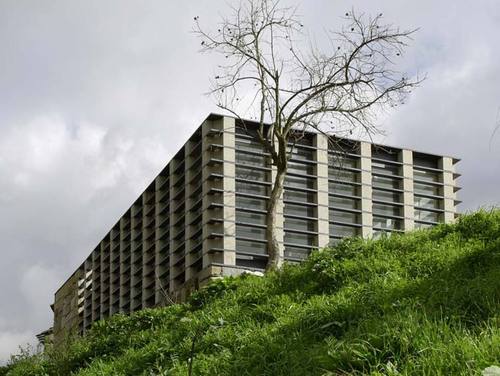

This kind of approach aspires to bring this new building near in colours, materials and textures to some vernacular constructions of granite, wood and slate that already exist in the region.
Photo: Jorge Garcia Pereira © All rights reserved. Courtesy by Francisco Portugal e Gomes
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.

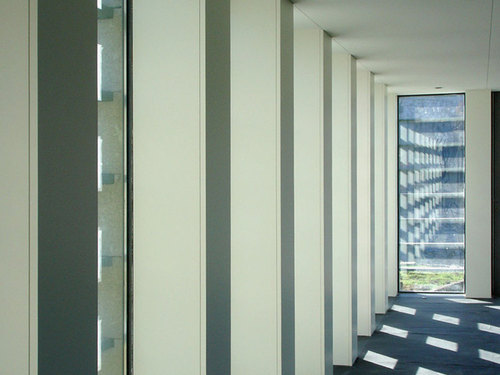

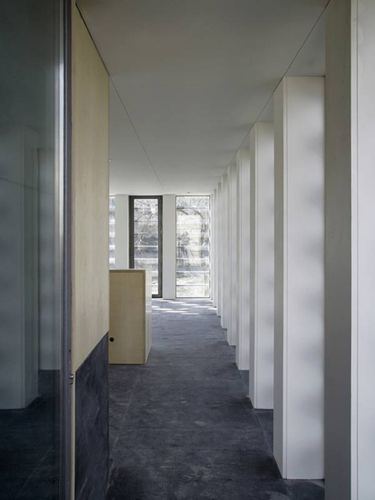

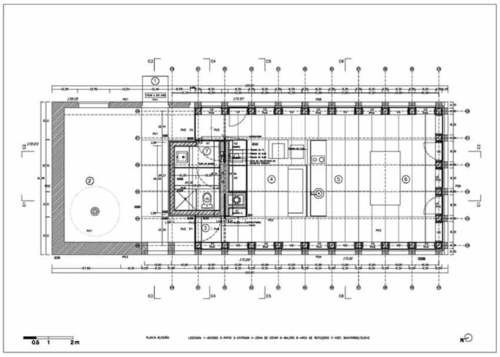

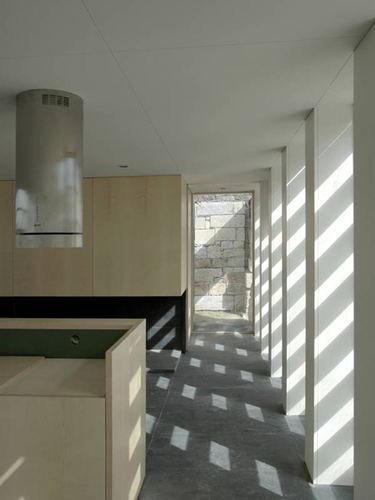

The pavilion organisation departs from a nucleus of sanitary and shower fittings, placed between the yard and the covered area, trying to strengthen the entrance direction through its compression, in order to release all the remaining space in a single multifunctional compartment. The inner space is marked with structural porches and carpentry facades, which shut make the total closing of this inner space and opened allow the perception of the surrounding landscape from an angle of 180º.
Photo: Francisco Portugal e Gomes © All rights reserved.
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.
Photo: Francisco Portugal e Gomes © All rights reserved.
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.
Photo: Francisco Portugal e Gomes © All rights reserved.
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.
Image: Francisco Portugal e Gomes © All rights reserved.
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.
Image: Francisco Portugal e Gomes © All rights reserved.
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.
Image: Francisco Portugal e Gomes © All rights reserved.
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.
Image: Francisco Portugal e Gomes © All rights reserved.
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.
Image: Francisco Portugal e Gomes © All rights reserved.
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.
Image: Francisco Portugal e Gomes © All rights reserved.
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.
Image: Francisco Portugal e Gomes © All rights reserved.
© Francisco Portugal e Gomes . Pubblicata il 23 Maggio 2007.
