Campus Commons

Addition to the Student Union Building

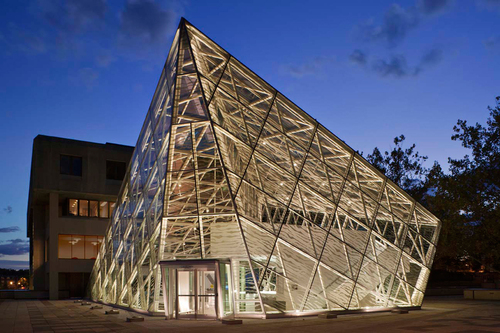

Evening view of Commons from plaza deck illustrating the structural tube stress skin

The State University of New York at New Paltz needed to expand its 1970 Student Union building by providing informal gathering spaces for students.

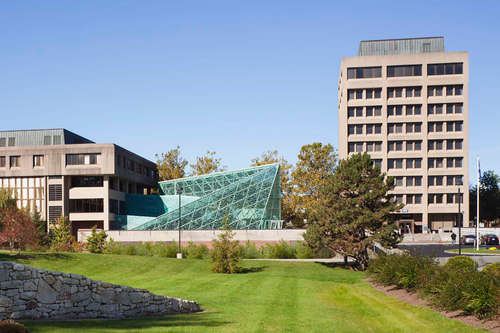

View of Campus Commons from main campus entry

The existing Student Union building was designed as an isolated cellular office building and did not have space for student collaboration or congregation. In addition, the University wished to change the overall appearance and presentation of the existing building which conveyed an uninspired institutionally functional appearance at the gateway to the university.

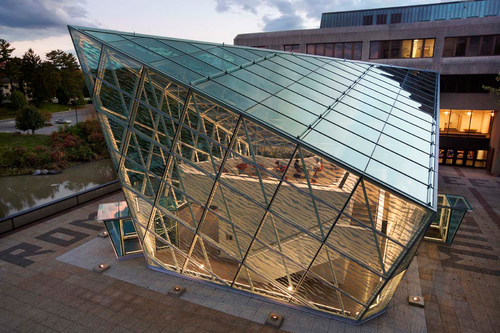

View of Commons illustrating its transparency and internal scholar mezzanine

Solution 

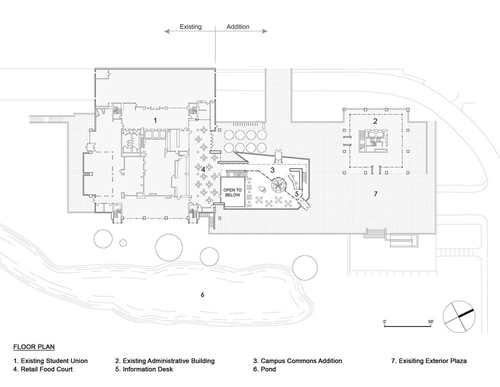

The Campus Commons project at The State University of New York is a steel and glass ‘winter garden’ addition to an existing 1970 student union building. The Campus Commons in filled and spanned over an existing underutilized exterior courtyard, transforming the exterior space into a vibrant interior university living room. The Campus Commons houses a large space for informal gathering, multi-purpose meeting rooms, food court, student ID offices, bookstore, entertainment center and meeting rooms.

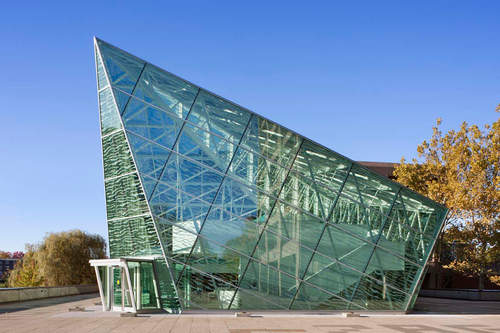

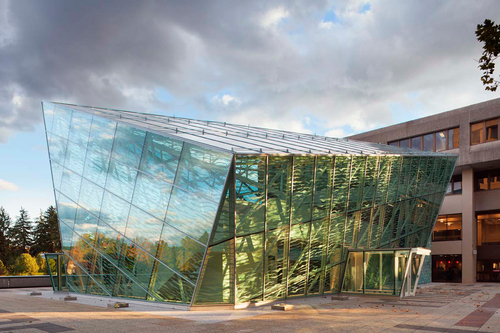

View of Commons illustrating the planar forms of the assembly

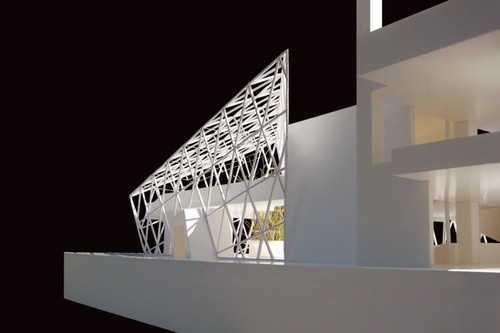

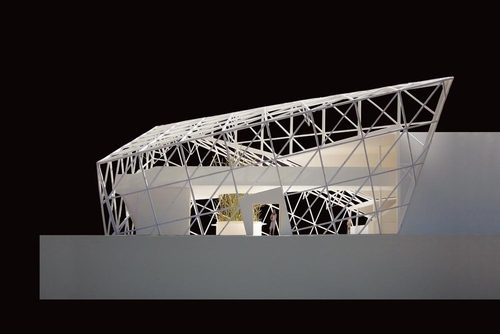

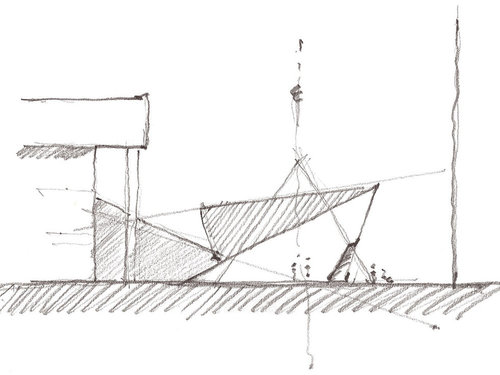

Inspired by the regional landscape of the Catskill Mountains, the form and shape of the Commons is abstracted from the Shawangunk ridge, a local internationally known rock climbing palisade that can be seen from the site and is a unique and special physical characteristic of the University’s location. In order to span over the existing courtyard with a column free enclosure for future flexibility, we designed a structural tube stress skin system that created the angular forms of the pavilion that metaphorically references the Shawangunk ridge.

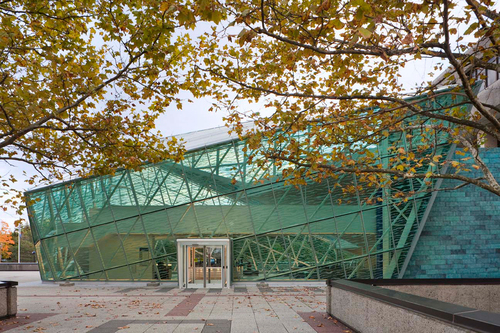

View of Commons from main campus pedestrian pathway

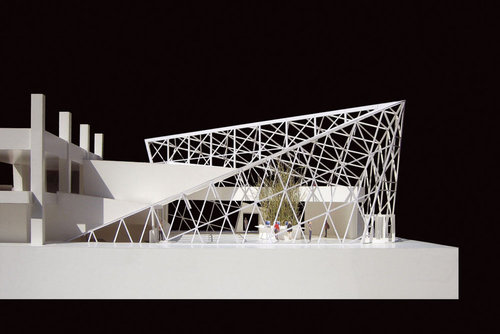

Uniform 4 inch square structural tubes shop fabricated in large planar sections were erected on site like a giant origami assembly and sprayed with intumescent paint to achieve the required fire rating. The erection of the entire enclosure was complete in less than two weeks.

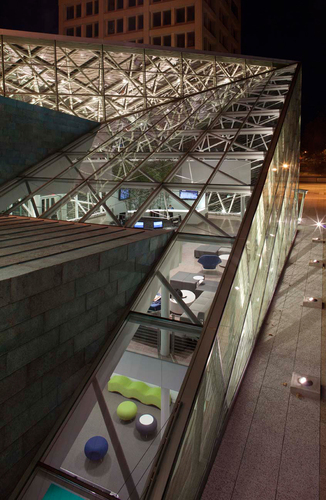

Illuminated interior allows structural tubes to be seen in silhouette and student  activity during evening

In order to resist the dead load and wind uplift on the roof, a 1” diameter stainless steel cable with 2” down rods were utilized to transform the stress skin on the horizontal roof plane into a truss.

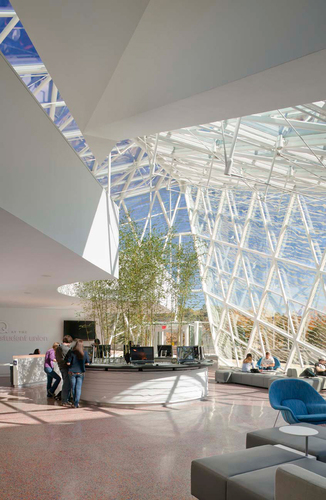

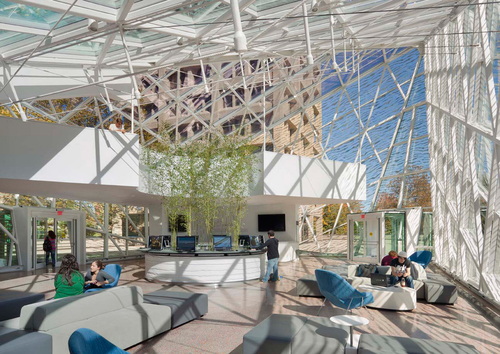

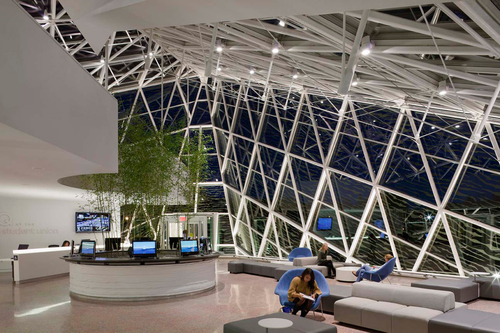

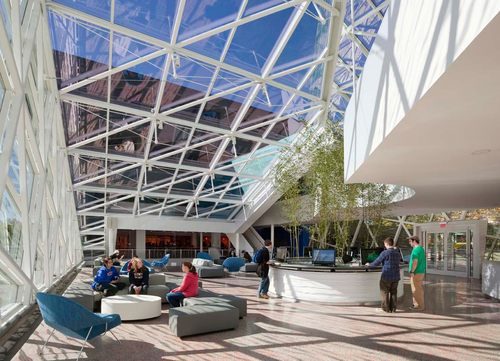

Interior of informal gathering area

Ceramic fritted glass was placed on top of the stress skin to create the enclosure. The pattern of the ceramic frit is an abstracted digitized version of the tectonic plates of the Shawangunks. The final solution creates an exciting Campus Commons as a steel and glass ‘palisade’ set between two existing concrete brutalist buildings that transforms the entry gateway experience to the State University of New York at New Paltz with structural expressiveness.

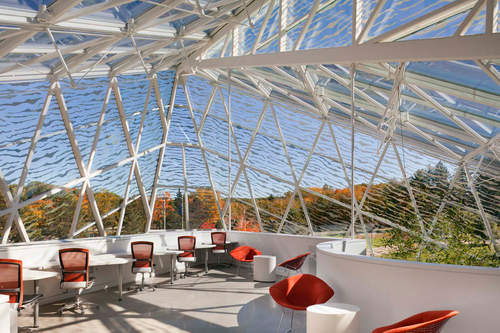

Interior of scholar mezzanine overlooking the Catskills

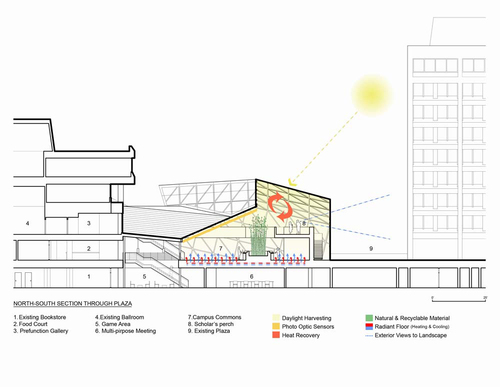

The Commons is designed to achieve a LEED Silver certification by day light harvesting and views, radiant heating and cooling, recyclable materials and photo optic lighting controls.
