This project is the staffroom of the hair salon in Hamamatsu, Japan. The client needed a space to take a nap and meal. Fortunately, there is a timber deserted loft at the rooftop of the same building. So we aimed at solving this contradictional demands by using materials from this rooftop loft. At first we wrecked this loft, then calculated all of materials. Then, we begun to study on the CAD ,which means that we constructed the actual measure and materials in the virtual space.

© Kenta Hasegawa . Pubblicata il 10 Febbraio 2012.

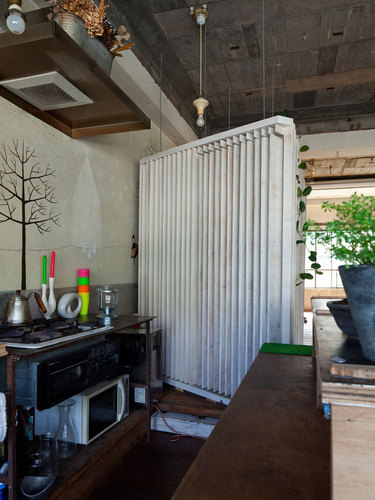

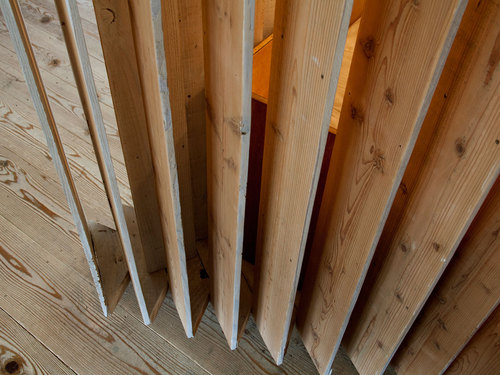

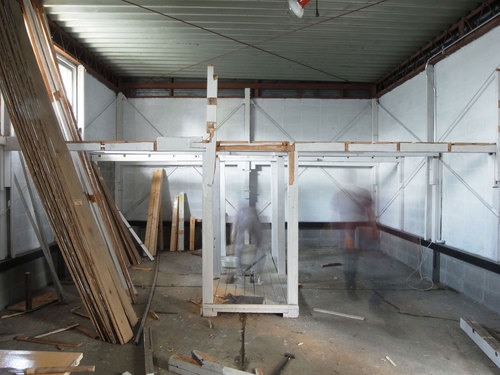

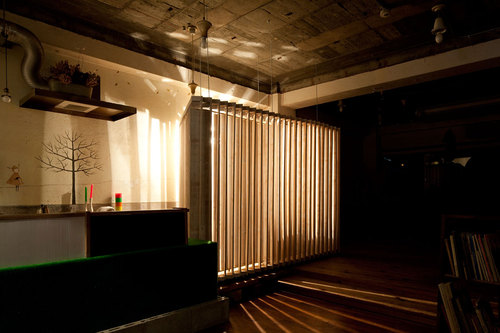

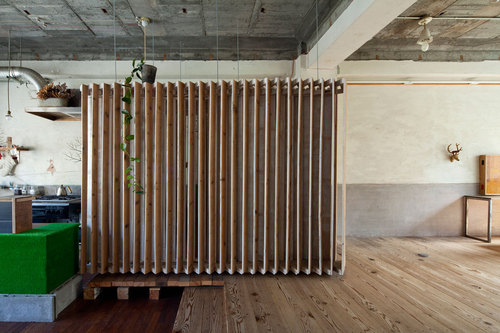

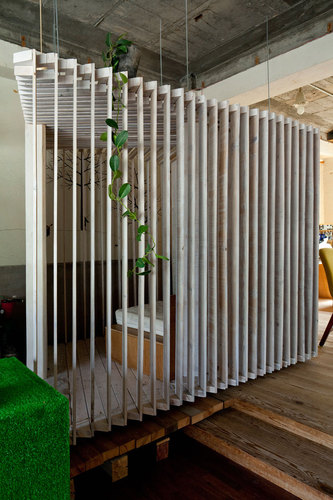

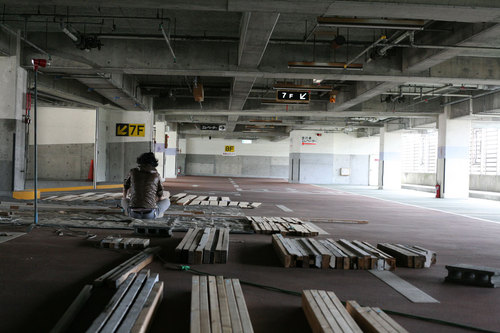

Also in the construction term, we used the huge parking to spread lots of materials as if in the virtual space of the CAD. We choose the “site prefabrication”. We converted “ex beam” to the new floor, and “ex floor board” to the new columns, and “ex joist” to the new beam for the structural system of layering miner grids. Ex floor board which become columns works as double louver controlling eye view, keeping air flow. And this louver solve that contradictional demands “nap” and “meal”. With each louver, one side was painted white, the other side was not painted.

© Kenta Hasegawa . Pubblicata il 10 Febbraio 2012.

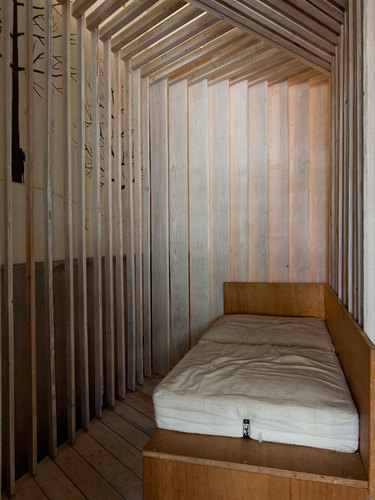

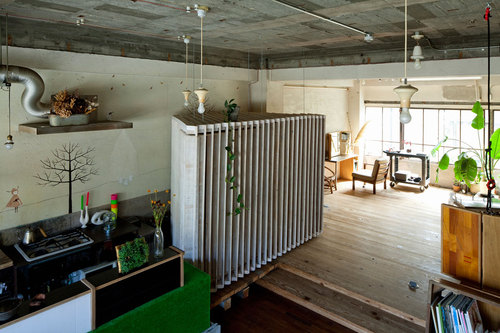

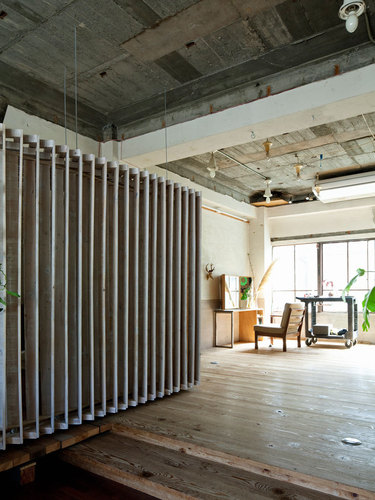

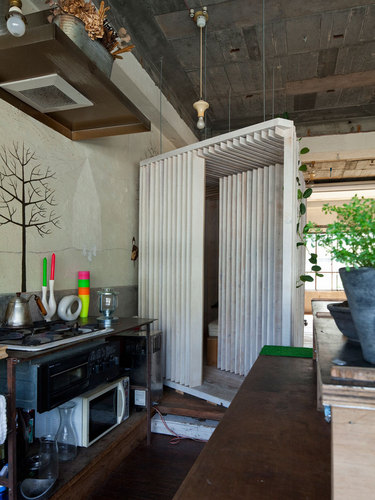

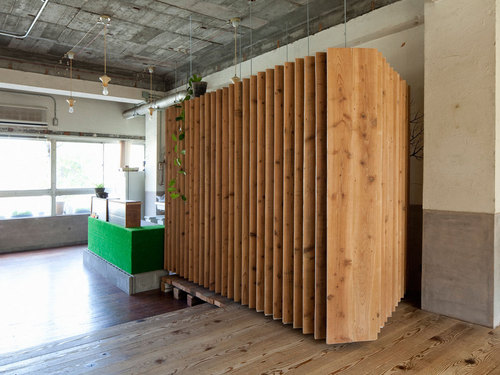

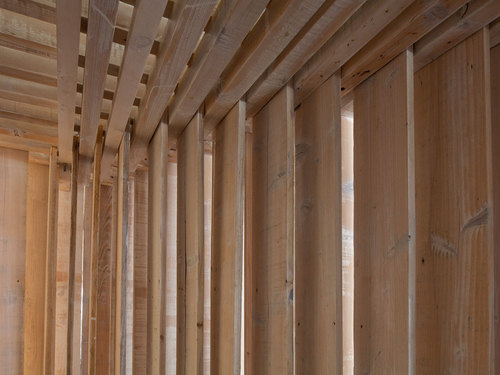

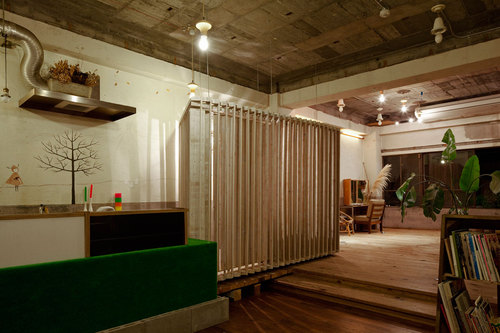

So we can see this volume as white, light one from the entrance, in the other hand, we can see as massive wooden volume from the cutting space. We wanted to propose an alternative distance. Inside is white space but actually it looks soft yellow because the light from outside moves around and reflects with the non-painting louver.

© Kenta Hasegawa . Pubblicata il 10 Febbraio 2012.

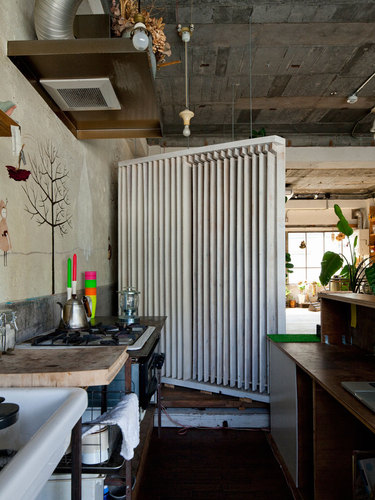

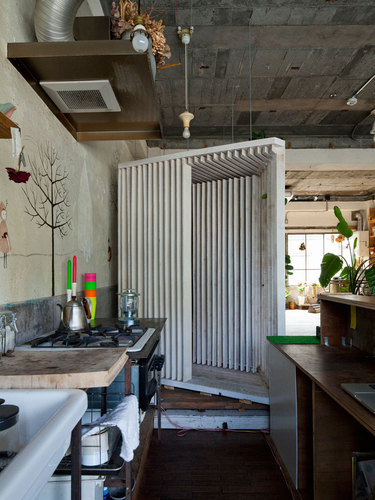

The surface of each material painted white has a marbled pattern because we wanna use existing pattern of the each materials which consist of the loft. And this volume hanged out from the ceiling to simplify each connection by canceled the weight of itself. Though out this project, we reconstructed every topic of the architecture such as structure, program, study, construction, window, volume, surface by converting the structure which had already constructed to the new system.
