Copenhagen, Denmark

Bryghusprojektet

A linear display of the tenets of Danish Modernism: monumentality, simplicity and politeness.

The Copenhagen harbour is experiencing a surge in development, transforming a previously under used natural asset into a new city-wide destination. The Bryghusgrunden site lies in the centre of this transformation. To capitalize on the sites potential we propose to use the building as an urban motor to actively link the city and the waterfront. Providing a connection under the busy Christians Brygge, where entrances to the different program elements are strategically located, the site becomes both a destination and a connector at the hinge of the waterfront and the entrance to the city.

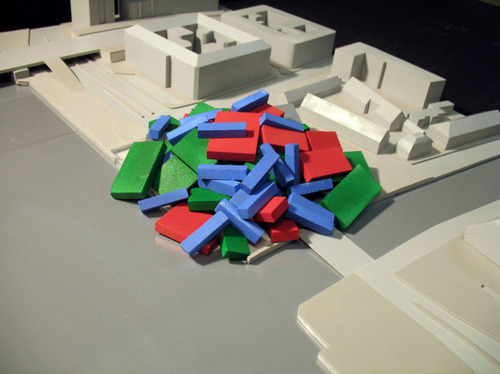

Opposed to the typical stacked section, where building programs remain autonomous, the program heap can create unexpected and unpredictable situations where each program is made aware of its coexistence with the others.

Zoning

The Bryghusgrunden site, situated on a fault line between two zones: a stagnant heritage zone of government offices and historic buildings, and a mutating metropol zone – can be considered as a newly born urban district. The polarity between the two, along with the waterfront location, give the site a unique position within Copenhagen.

The Bryghusgrunden site, while occupying an ideal location along the harbour waterfront lacks any identity. Public spaces, city, and water merge into one continuous field of asphalt and concrete.

No Spatial Definition

The public domain on and around the site currently lacks any spatial definition. No distinction is made between road, car park and urban plaza. The open area is too large and very unspectacular, it could have been anywhere. There is no sense of being in the epicenter of Copenhagen where city and waterfront are coming together.

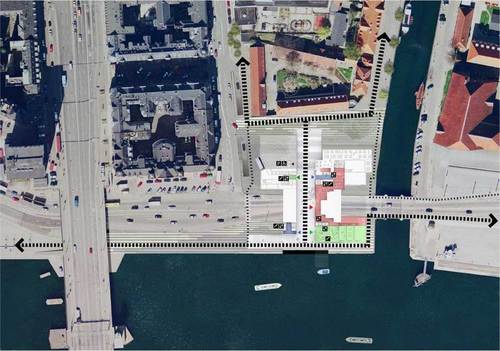

No Connectivity

Currently, the public circulation throughout the site enforces the separation between city and water With no connection between the two, movement from the city remains distinct from pathways along the waterfront. The typical remedy to this situation is to setback buildings from the water to create a public passage. However, looking at the existing situation along the harbour front, the size, quality and atmosphere of these spaces renders them empty and unusable.

Meeting Point

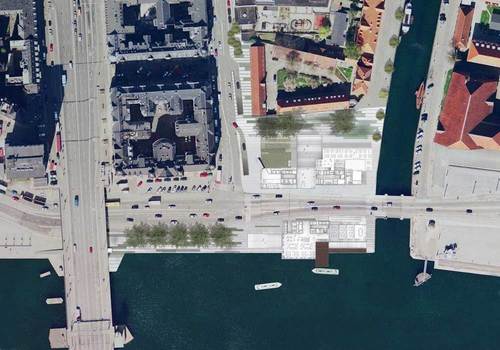

To give the waterfront definition and a sense of destination, a strong building footprint, touching all four sides of the site, would break the monotony. Each side of the site would retain its own identity. The building would become a meeting point of the waterfront, the harbour, Kierkegaards Square, and the city.

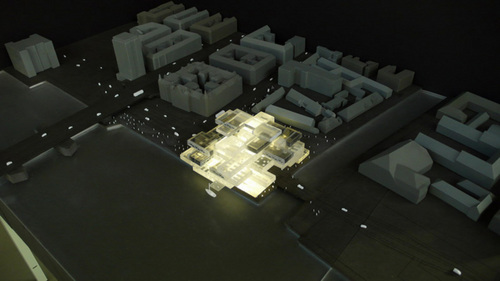

Urban Definition

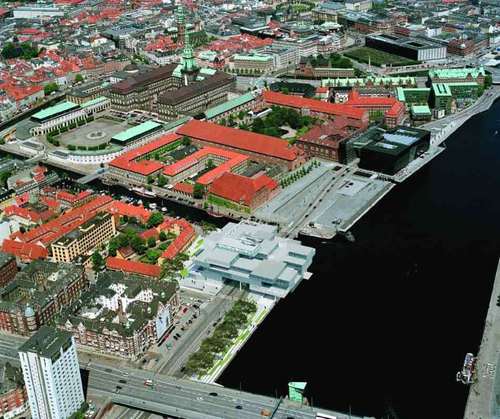

With the square footprint the surrounding areas are reformed. Kierkegaards Square is given a strong border and a sense of enclosure. The northern area of the site is reformed into an intimate urban plaza, while the waterfront is reactivated with public activity.

Building

Can we create a building that not just responds to the contextual issues, but that is capable of introducing a new impulse in this area? Can we turn the constraints into exciting conditions and create a new language for Copenhagen?

Harbour Modernism

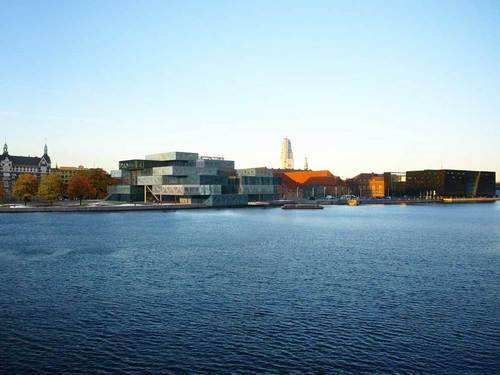

A linear display of the tenets of Danish Modernism: monumentality, simplicity and politeness. The harbour holds some of Denmarks most notable architectural icons, both past and present

Concept

Responding to the Bryghusgrundens harbour neighbors formed the motivation of the project. Hyper-clean, modern, and polite became characteristics to investigate.

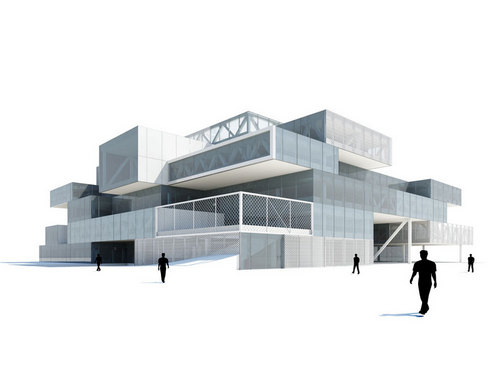

Volume

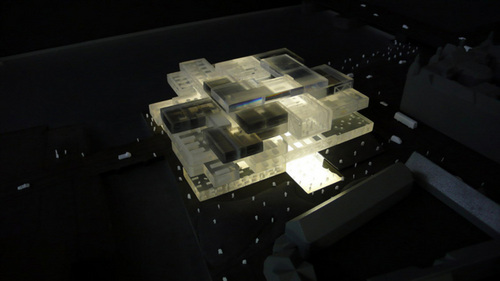

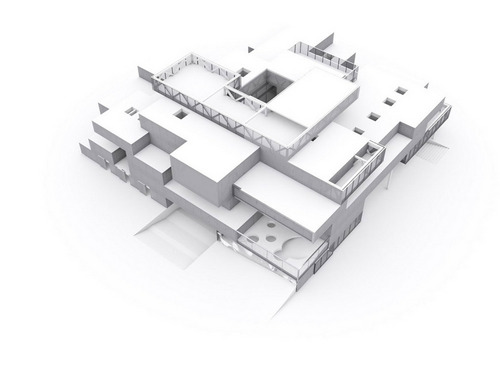

The urban context made us interested in a large footprint for the building. In order to fit in the requested program a solid volume, similar to the adjacent modern buildings, could be the base for the design.

Heights

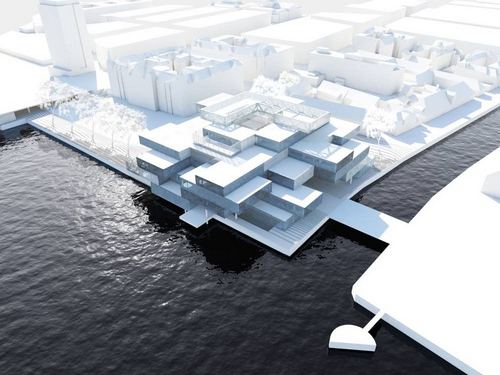

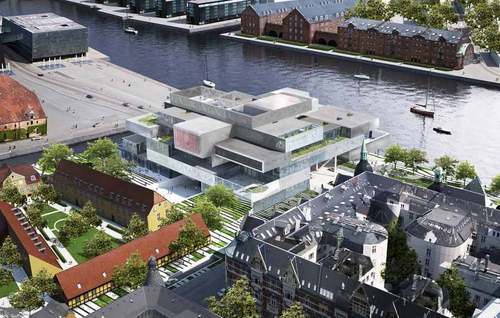

Surrounded by historically significant and protected buildings on three sides of the site, the surrounding context is highly sensitive to the buildings volume. The highest point of the building relates to the Lille Christianborg to the west and the Old Brewery to the north east forming an enclave of low rise historical buildings directly to the north.

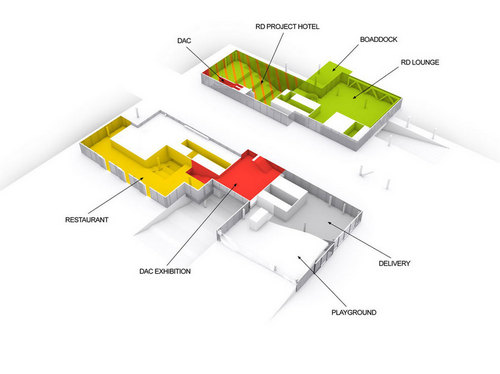

Mixed-Use Building

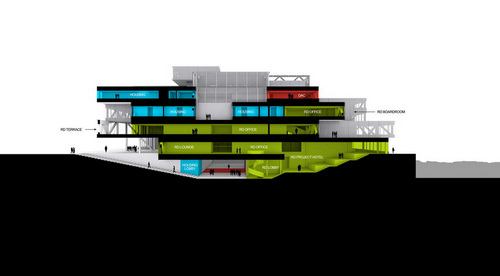

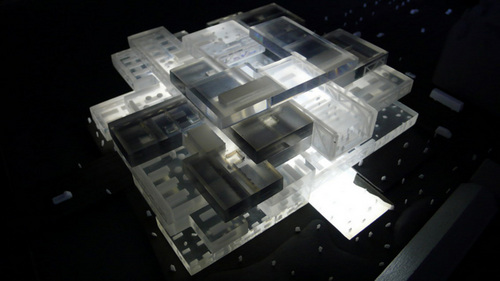

The various program elements are stacked in a seemingly random order. The public program, the urban routes and the DAC, reach into the heart of the building and create a broad range of interaction between the different users.

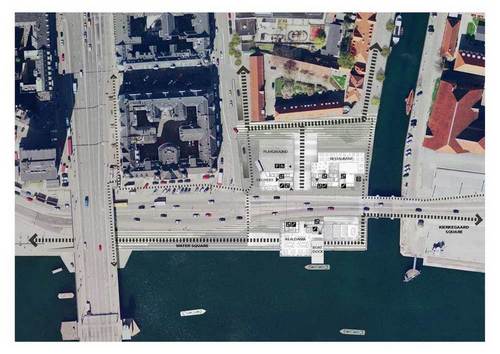

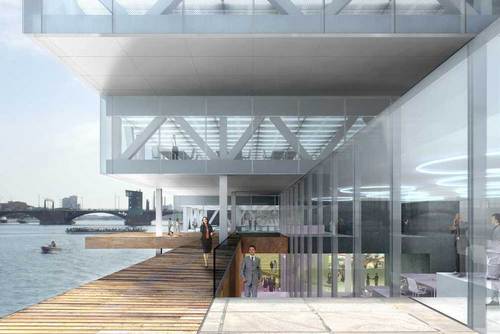

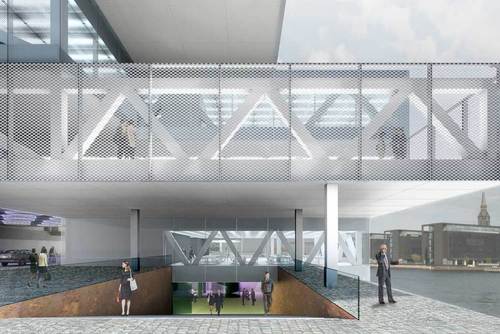

Urban Passage

Situated between the city centre and the waterfront, the site possess one of Copenhagens few remaining opportunities to connect the two. To capitalize on the sites potential the building introduces the concept of the urban motor to Copenhagen and actively reunites the city to its harbour.

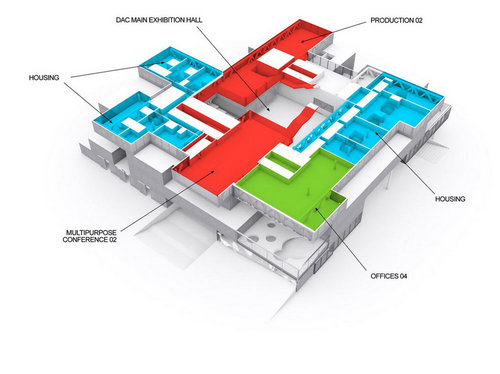

Program

DAC

The Danish Architecture Centre, the only architecture research, and display venue to be embedded within its own subjects of housing, offices and parking.

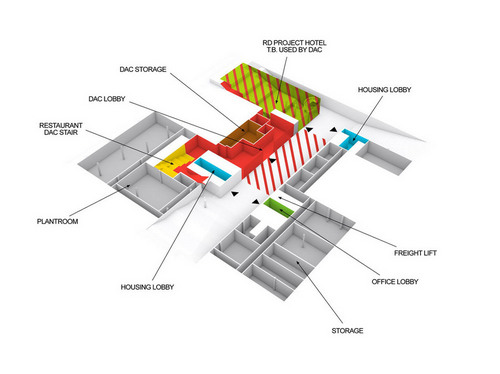

Program Sequence

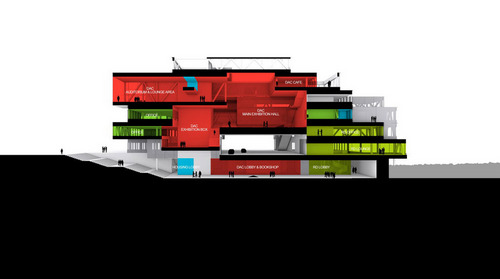

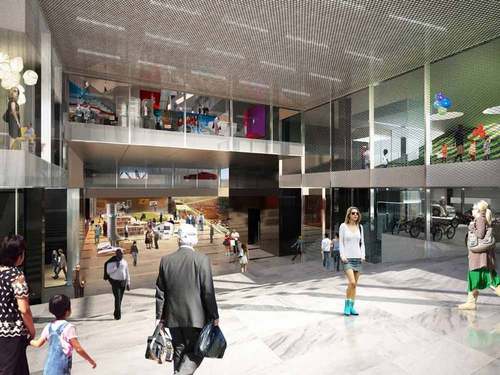

The DAC program is organized as a vertical sequence through the building. Starting below ground and moving upwards to the cafe with its view over all of Copenhagen, each program is given a unique position and quality making a varied progression through the building.

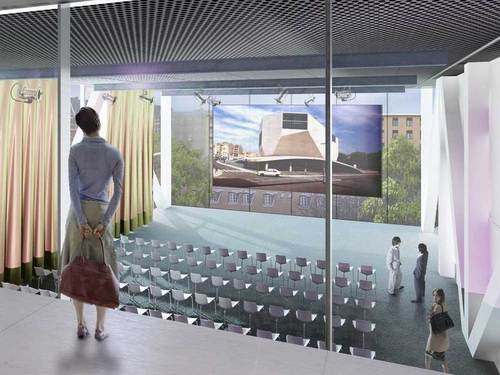

DAC Auditorium

Looking out over the city of Copenhagen, the DAC Auditorium reconnects the visitor to the city; from the outside it becomes a attracting beacon for DAC.

Laboratory

DAC could take advantage of its varying position throughout the building by treating the surrounding program as testing ground for architectural experiments in housing, offices and parking.

RealDania

The offices for Realdania are located on the lowest three levels and can be accessed from the Urban Passage. Via voids and double height spaces the various levels are spatially connected and offer interesting views and relations between the offices and the urban spaces along the water

Offices

The rentable office spaces offer generous views into the city through the large glass facade. The facade to the DAC atrium provides internal relations to other building users and the public. All offices are provided with natural ventilation which will enhance the comfort in the office space.

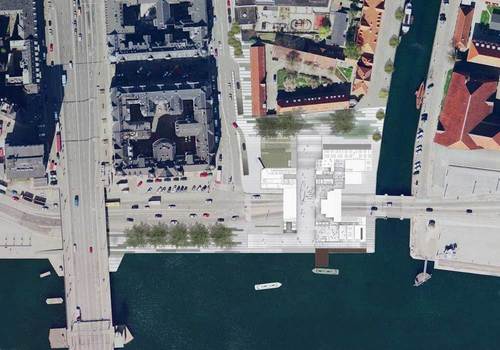

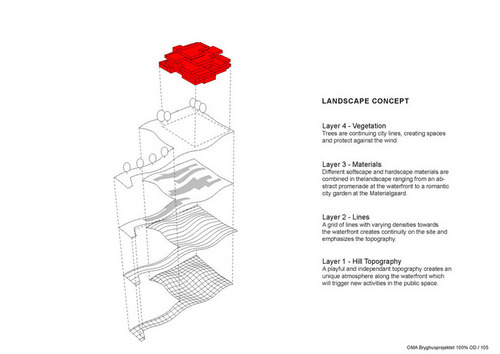

Landscape

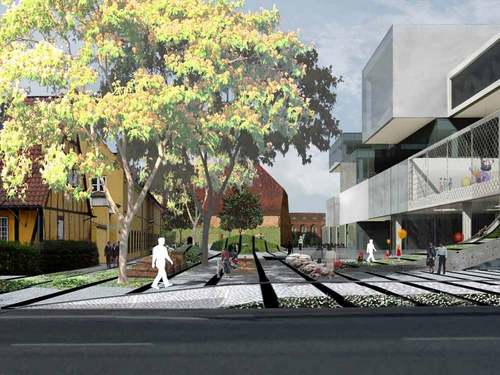

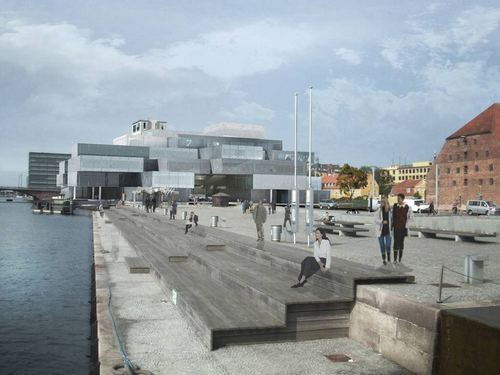

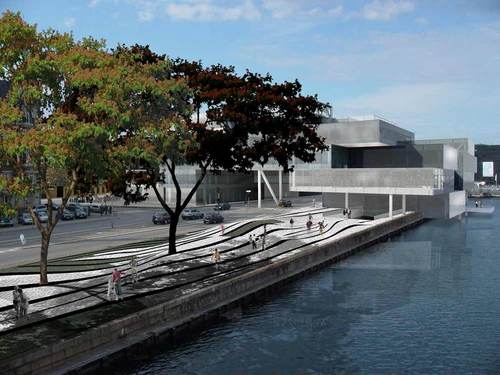

As an extension of the urban passage, the surrounding site is reformed into a series of public spaces. The north, adjacent to the Materialgård, is small in scale and designed as an intimate public plaza. Along the water, the long and narrow strip is populated with urban activities further intensifying the population of the site.

Playground

In the design of the building and the landscape a playground concept is integrated.

Different than the current playground the new proposal has different typologies of playgrounds distributed over the entire site. The most secured playground area is an exterior terrace located within the building volume, the landscape at the waterfront is attractive for the older kids. The playground will have a mix of an urban character and natural topographic elements and will challenge the children.

Partners in charge:

Rem Koolhaas, Ellen van Loon

Project Managers:

Chris van Duijn, Dirk Peters

Team:

Phase 1, Concept Design: Adrianne Fisher, Ana Martins, Andrea Bertassi, Carmen Jimenez, Daniel Rabin, Gabriele Pitacco, Hyoeun Kim, Joana Sa Lima, Koen Stockbroekx, Konrad Milton, Ludwig Godefroy, Mark Balzar, Marc Dahmen, Ola Strandell.
