Zaragoza Bridge Pavilion

Expoagua 2008

1199_cp_lh_0608_009_large

The Zaragoza Bridge Pavilion is organized around 4 main elements, or “pods”, that perform both as structural elements and as spatial enclosures, where each ‘pod’ corresponds to a specific exhibition space.

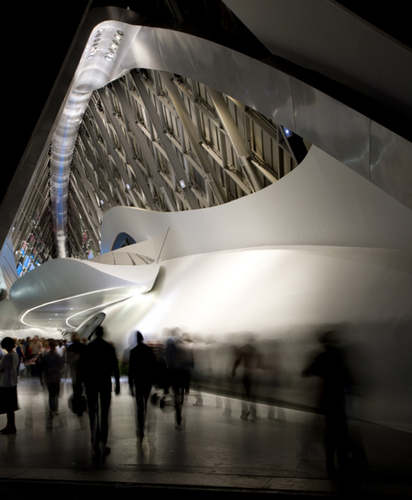

1199_cp_lh_0608_008_large

Expo Zaragoza originally envisaged the concept of an enclosed exhibition pavilion spanning the river. This concept is extremely exciting and Zaha Hadid Architects worked to develop the design that couples architecture and engineering.

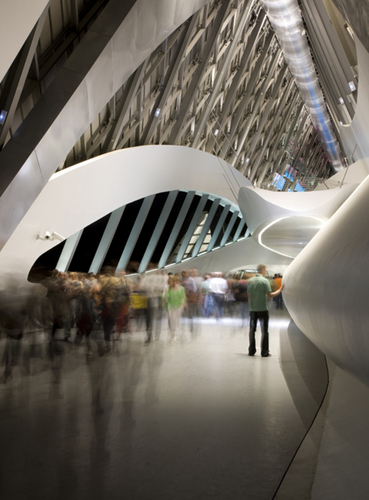

1199_cp_lh_0608_010_large

For this reason, the structure is largely visible and plays an important role in defining the Bridge Pavilion’s external envelope. The unique design meets the client’s wish for enclosed exhibition spaces, yet offers direct visual connections with the river whilst also shading from the sun.

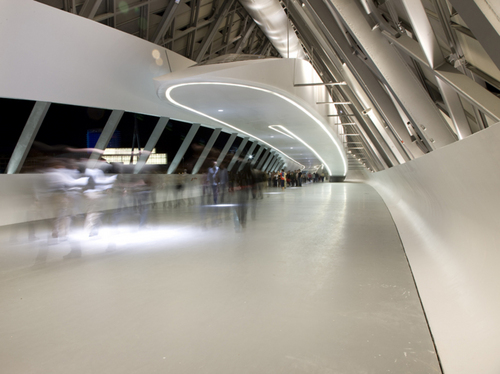

1199_cp_lh_0608_013_large

The Bridge Pavilion represents over 30 years of detailed research and examination by Zaha Hadid into bridge design.

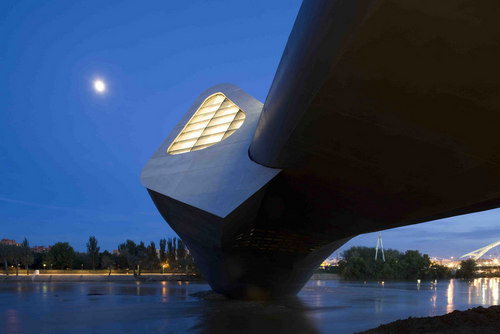

1199_cp_lh_0608_004_large

The practice has a welcome reputation for extracting the maximum potential from structural advancements and technical innovations, with the Bridge Pavilion design using the latest in design and construction technologies.

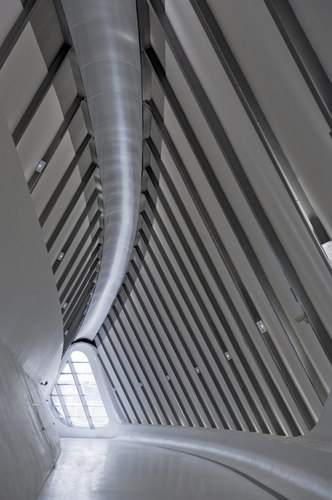

178_large

“We like projects which are structurally ambitious and I think the Bridge Pavilion illustrates the excellent symbiotic relationship we have with engineers.” says Hadid. “Our ambitions towards creating fluid, dynamic and therefore complex structures has been aided by technological innovations, and applying this knowledge to the Bridge Pavilion has been a very rewarding process.”

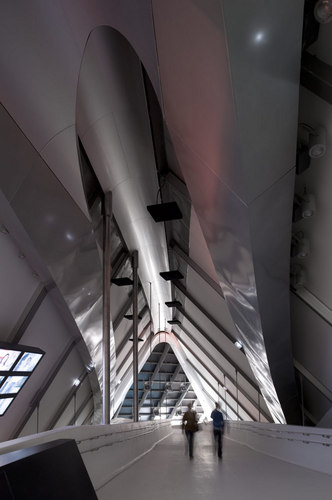

216_large

The hybrid nature of the Zaragoza Bridge Pavilion represented the perfect challenge for Zaha Hadid Architects. The design merges two traditionally distinct and separate building typologies: the “infrastructure” element (the bridge) and an “architectural” element (the pavilion). With the Bridge Pavilion design, Zaha Hadid Architects has challenged the conventional idea of a bridge being purely engineering.

Zha_zaragoza_bridge-pavilio_large

“As the Bridge Pavilion is not one particular building typology, this really adds to the richness of the spaces inside.”explains Hadid. “We build the complexity of all our projects in relationship to the inherent complexity of the program, but then clarify the diagram as much as possible to be a logical configuration. This is evident in our design for the Bridge Pavilion. All the forces operate at the same time, so that the view of the exhibition is inherently related to nature of the visitors’ path through the Bridge Pavilion – but equally, the experience of the path shifts according to what the viewer is seeing at a given moment.”

1199_sm_0605_05_large

Model

Design: Zaha Hadid and Patrik Schumacher

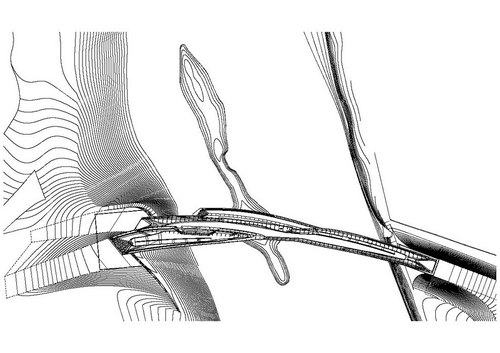

Zha_z_lo_large

Project Architect: Manuela Gatto (Associate)

Zha_z_no_large

Project Team: Zaha Hadid Architects: Fabian Hecker , Matthias Baer, Soohyun Chang, Feng Chen, Atrey Chhaya, Ignacio Choliz, Federico Dunkelberg, Dipal Kothari, Maria Jose Mendoza, José Monfa, Marta Rodriguez, Diego Rosales, Guillermo Ruiz, Lucio Santos, Hala Sheikh, Marcela Spadaro, Anat Stern, Jay Suthadarat.

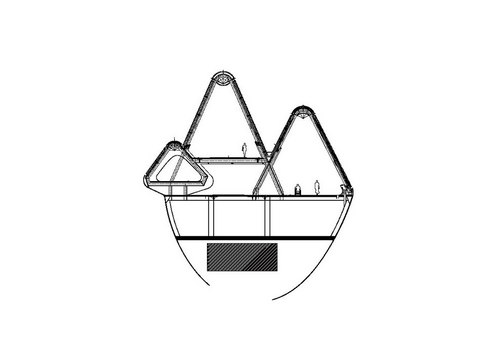

Zha_zaragoza-bridge-pavilio_large

Arup: Francisco Javier Rueda, Kevin Acosta, Jorge Arruga, Monica Bamogo, Simon Barnes, Gordon Brown, George Faller, Ignacio Fernandez, Jimmy Jonsson, Javier Galan, Alejandro Garcia, Fernando Garcia, Matias Garcia, Valentin Garcia, Mitsuhiro Kanada, Francisco Luque, Brian Loudon, Nerea Martinez, Carlos Merino, Duncan Steel, Ana Cristina Tomas.

Zha_zaragso_large

Client: Expoagua 2008

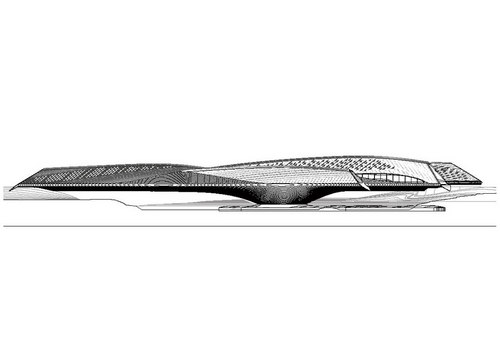

Zha_zea_large

Dimensions: Length: 270m (185m from the island to the right bank + 85m from the island to the Expo riverbank).

Zha_zlo_large

Distance between foundations: 155m (from the island to the right bank) and 125m from the island to the Expo riverbank).

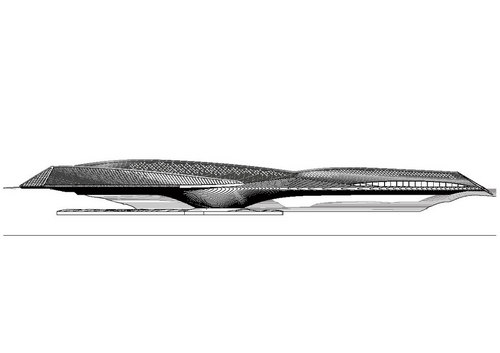

Zha_zwe_large

Floor area: 6412sqm

Maximum height: 30m.

Foundation piles: 68m

North Section (3 ‘pods’) weighs 3,500 tons

South Section (1 ‘pod’) weighs 2,200 tons
