The project consists of two main buildings responding to very different programs. One of the buildings is placed in the center of the campus while the other one is on the outer part, being the university’s external image with a more public program. We think that this last one should have a more singular character, as it can be seen as the entrance hall to the university.

© Estudio Carme Pinós . Pubblicata il 29 Gennaio 2009.

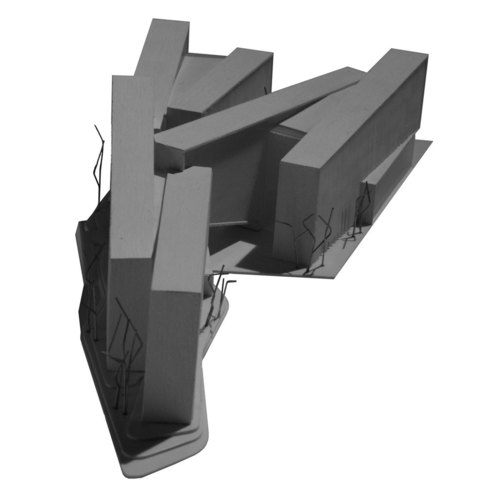

We solved the quite systematic program of the two buildings, with a game of parallelograms, which resolves very easily the placement of the different offices and other rooms.

© Estudio Carme Pinós . Pubblicata il 29 Gennaio 2009.

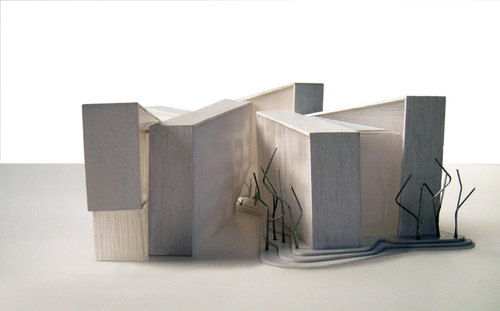

In the institutes’ building, the game of volumes solves the connection between the two separated parts of the building proposed in the masterplan and each institutes’ program can be placed in only one level without losing the required pedestrian passage: by uplifting one of the wings we let the street pass underneath the building.

© Estudio Carme Pinós . Pubblicata il 29 Gennaio 2009.

In this building, the game of volumes responds to our wish of creating public spaces and paths. The main street’s façade shelters the public areas, such as the cafeteria and the library, which have an independent entrance. The wing housing the classrooms on the ground floor is lifted 1,5 m on grass mounds to give them more privacy.

© Estudio Carme Pinós . Pubblicata il 29 Gennaio 2009.

The vast façades are solved with 30 cm wide vertical strips that, as well as working as “brise-soleil”, create a constant change of image as the point of view is moved. The façades of the various parallelograms appear to be different even if they are more or less alike.

© Estudio Carme Pinós . Pubblicata il 29 Gennaio 2009.

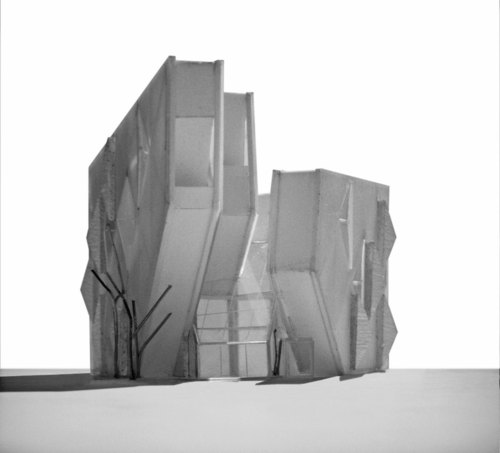

In the other building we wanted to emphasize the entrance to the university, so the volumes are lifted up as cantilevers, allowing one to pass under the others and converting it into a glass volume, the university’s hall.

© Estudio Carme Pinós . Pubblicata il 29 Gennaio 2009.

The metal beams and the concrete fillings that make possible the cantilevering become the façade’s formal expression. A silk-screened glass wall covers the beams, blending them and providing the structure with an elegant quality.

© Estudio Carme Pinós . Pubblicata il 29 Gennaio 2009.

Main architect: Carme Pinós Desplat

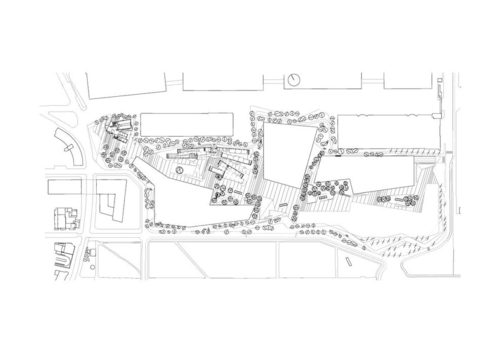

siteplan

© Estudio Carme Pinós . Pubblicata il 29 Gennaio 2009.

Collaborators:
Architects: Holger Hennefarth
Roberto Carlos García
Juan Antonio Andreu
Alexandra Clausen
Structure: Robert Brufau – BOMA
Model: Estudio Carme Pinós
Computer graphics: Daniel Cano

© Estudio Carme Pinós . Pubblicata il 29 Gennaio 2009.

Photographs: Estudio Carme Pinós
