buenos aires, Argentina - Concorso - Dicembre 2008
fabricio contreras ansbergs
Museo Nacional de Sillas
MUNASI

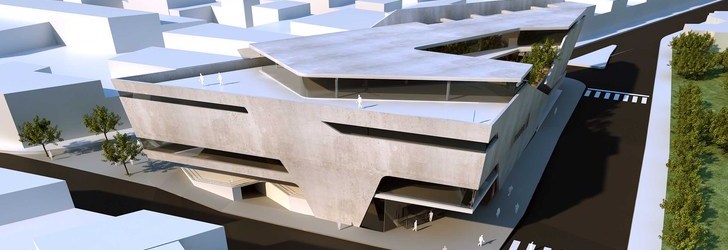

Aerea_1
Pubblicato il 27 Maggio 2009

The project is developed in an area that is growing as a civic nucleus for Buenos Aires. The building is directly related with the civic park trough it´s ground floor, generating new public situations in a consolidating environment. A matter of importance of its architecture is that it has two public levels. Since the topography of the area is 3 meters deep, it generates different kind of scenarios in a complex program as the one for a museum. This program contains: deposit, administration, auditorium, temporary exhibition, permanent exhibition as well as library, multimedia section, bar, café, gift shop and hotel.

In the designed spaces we can found constant visual links that increases the use of each part of the architectonic program. The -3.00 m level contains the main hall (the perspective to the exterior composes three elements: church-museum-park) that rises between two green patios, developing public program, which provokes a growth of the air contained by this hall. On the other levels lie the exhibitions, library and media. The hotel is contained on the top plan of the museum which is surrounded by patios that fill the interiors with natural light. The ground floor connects both hall and foyer to give birth to a temporal exhibition.

The museum rises as a place of cultural construction.

Capogruppo
fabricio contreras ansbergs
Collaboratori
Altri Collaboratori
Jorge Baez Moore, Nahuel Elías.
Rendering
Axel Ibarroule, Joan Marantz.
Modello
Martín Hong
Dati tecnici
Programma
Area Acceso Recepción 200 m2 Area Museo Exposición permanente Sala 1 500 m2 Sala 2 300 m2 Sala 2 200 m2 Exposición transitoria Sala 1 300 m2 Sala 2 200 m2 Sala 2 100 m2 Area Medios Biblioteca 100 m2 Hemeroteca 100 m2 Mediateca 100 m2 Area Publica Tienda 100 m2 Bar 150 personas 200 m2 Auditorio 150 personas 200 m2 Area Administrativa Oficinas 200 m2 Servicios generales Depósito 1000 m2 Mantenimiento 150 m2 Montaje 150 m2 Electricistas 150 m2 Seguridad 150 m2 Hotel 500 m2 Superficie total 4900 m2 Circulaciones 30% 1470 m2 Superficie total 6370 m2
Dimensioni
Superficie del lotto
1460 m2
Superficie lorda edificata
6400 m2
Altezza massima fuori terra
18 mts.
Numero di piani fuori terra
4 Plantas
Immagini (26)
Acceso_normal
Aerea_1_normal
Esquina_3_normal
Hall_normal
Hall Acceso
Maq_11_noche_normal
Maq_10_noche_normal
Maq_9_noche_normal
Maq_2_normal
Croquis_entorno_museo_blanco_normal
Relacion con Iglesia + Parque
Croquis_parque_museo_iglesia_2_normal
RELACION IGLESIA MUSEO PARQUE
Esquema_museo_normal
PROGRAMA
Maq_6_normal
Corte_2_copia_normal
Corte_longitudianl_copia_normal
Vista_este_final_copia_normal
Vista_norte_normal
Vista_oeste__normal
Implantacion_normal
Implantación
Planta_1_byn_copia_normal
Planta_2_byn_copia_normal
Planta_3_byn_planta_baja_normal
Planta_4_byn_copia_normal
Planta_5_byn_copia_normal
Planta_6_byn_copia_normal
Planta_7_copia_normal
Sala_permanente_normal
