crystal: the heart of the corporate headquarters adidas
© Gerhard Hagen . Published on June 03, 2009.

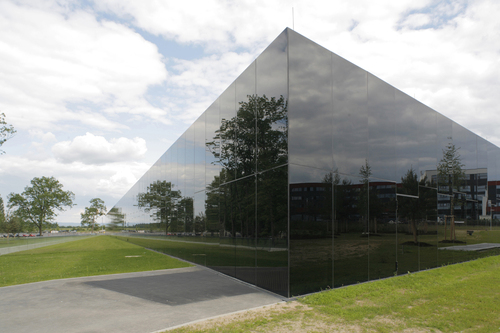

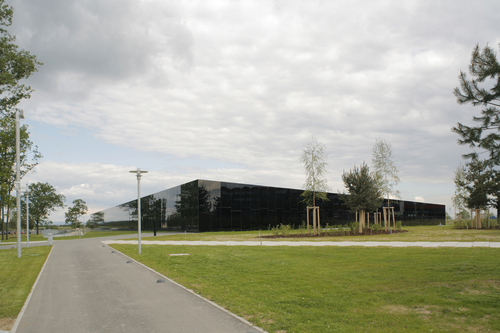

solitaire: a simple and clear construction becomes unique by its simplicity and consequently turns into the new centre of the campus. it imparts calm and aplomb.
© Gerhard Hagen . Published on June 03, 2009.
timelessness: the solitaire asserts itself over decades, independent from future trends, and the material used, glass, guarantees the quality of its appearance for a long time span.
© Gerhard Hagen . Published on June 03, 2009.
quality: solid coloured, black glass (parasol grey) – the special construction material is applied with a high quality of processing. it imparts calm and elegance.
© Gerhard Hagen . Published on June 03, 2009.

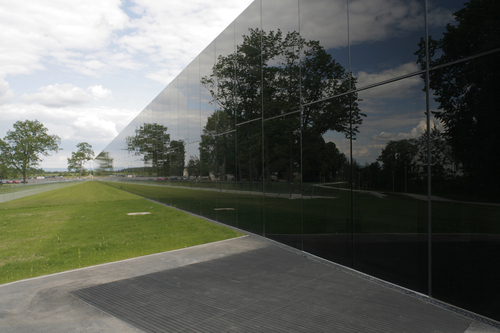

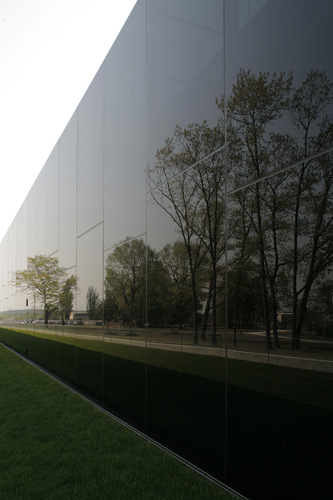

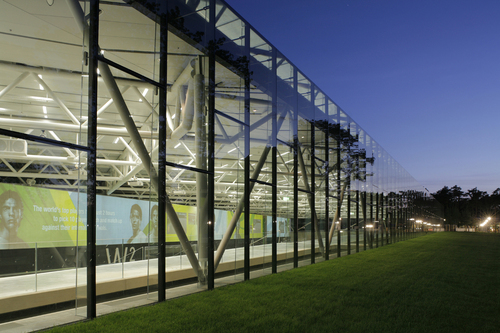

lustre: when approaching, transparency and reflecting lustre begin to interplay – the depth of the building can be noticed.
© Gerhard Hagen . Published on June 03, 2009.
dimension: 10.000sq metres of roofage, 12.000sq metres of floor space, 93.000cu metres of cubature, 50.000cu metres of excavation, 17.000cu metres of concrete, 1.400 tons of steel, 4.700 sq metres of glass, 108.000 m of data cables, etc.
© Gerhard Hagen . Published on June 03, 2009.
performance: strong function, svelte infrastructure, sinewy construction
© Gerhard Hagen . Published on June 03, 2009.

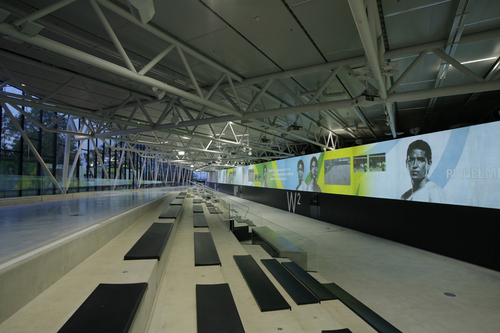

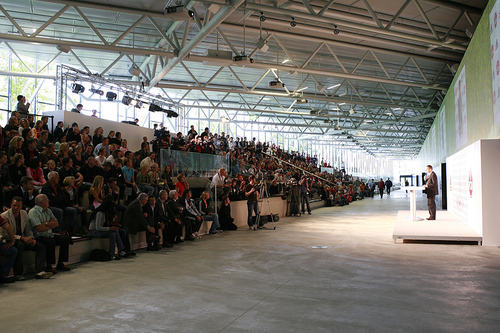

arena: the association of a stadium is synonymous to an eternal and continuously developing performance exhibition of sports.
© Gerhard Hagen . Published on June 03, 2009.

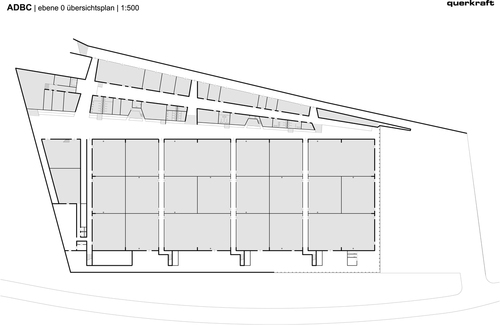

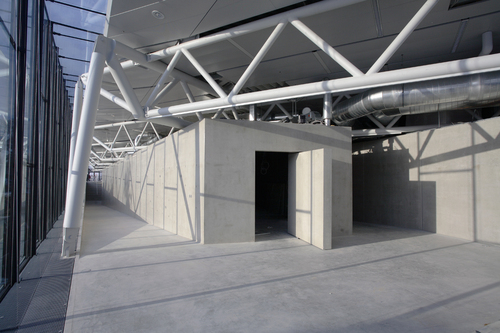

working: 5.000 sq metres of multifunctional space (room height 6m) with a flexible grid of 24 units of 200 sq metres each – the total length of mobile partition walls: 580 m.
© Gerhard Hagen . Published on June 03, 2009.

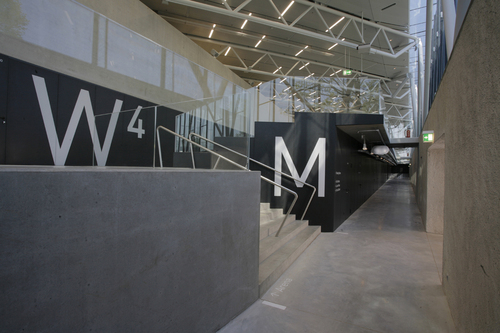

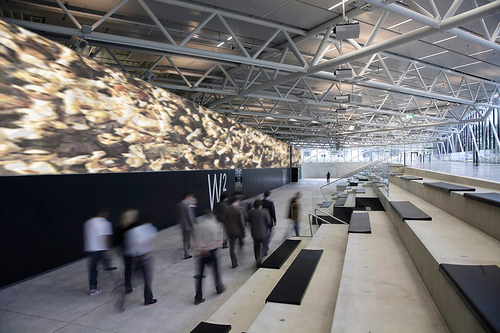

connection: the central corridor under the stands turns into a link between the arena, the meeting and the service rooms as well as the vertical spatial experience.
© Gerhard Hagen . Published on June 03, 2009.
meeting: a refuge to the show in the arena: entrenched, beyond and still directly to be reached from the arena, – directly connected with the recreational area of the atrium.
© Gerhard Hagen . Published on June 03, 2009.
walk of fame: the continuation of the tangential entrance – the depth of the building can be experienced. a voyage in time along the milestones of adidas commences.
© querkraft architekten . Published on June 03, 2009.
technology: high-tech engineering achievements with low-tech components
© querkraft architekten . Published on June 03, 2009.
wind peaks: at gusts of wind the damper remains stiff and operates as a bearing. it reduces loads pressing against the facade and allows its svelte construction.
© querkraft architekten . Published on June 03, 2009.
expansion: the steel structure expands under temperature – the damper is compressed and no forces are lead into the façade.
© querkraft architekten . Published on June 03, 2009.
shock absorbers: the application of simple, hydraulic dampers allows this sharp edged cube – 450 metres of a glass-only-façade without the integration of expansion profiles.
© querkraft architekten . Published on June 03, 2009.

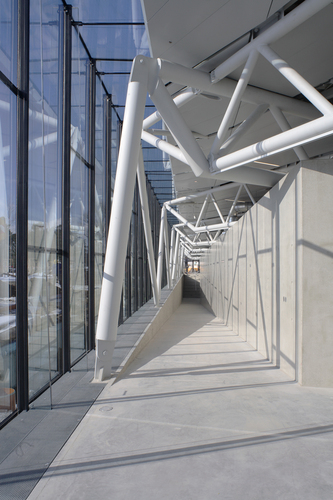

nodes: the load transfer of the roof girders rests on pillars which follow the façade. these inclined columns allow a vertical reinforcement of the construction at the same time.
© querkraft architekten . Published on June 03, 2009.
entering: technology derived from the vehicle construction is adapted to a squared up main entrance: „the black crystal opens up when approaching“.
